多孔氮化碳的绿色合成及光催化性能

doi:10.12422/j.issn.1006-396X.2026.03.004

摘要/Abstract

摘要：

油田加氢工艺作为提升油品质量、降低原油加工污染物排放的核心环节，在“双碳”背景下，其供氢模式的绿色化已成为行业转型的关键。传统的制氢模式碳排放强度较高，与油气行业低碳发展需求严重脱节。因此，开发绿色、安全的制氢方式具有实践意义。以(NH₄)₂S₂O₈和双氰胺的混合物为前驱体，通过热聚合的方法制备了多孔g-C₃N₄(pg-C₃N₄)；利用TEM、XRD、DRS、FT-IR等表征手段，对pg-C₃N₄的显微结构、光吸收能力、化学结构、晶体结构进行了分析，并考察了其光催化裂解水制氢和光催化降解污染物的能力。结果表明，pg-C₃N₄的比表面积约为49 m²/g；与颗粒状g-C₃N₄相比，pg-C₃N₄具有较大的比表面积和相对较高的光生电子-空穴对的分离效率，因此其在可见光下裂解水制氢性能以及分解罗丹明B（RhB）的活性大幅增强，并且能保持良好的降解性能和结构稳定性。研究结果为油田开发加氢工艺提供了一种绿氢制备方法。

关键词: 光催化, g-C₃N₄, 多孔结构, 制氢

Abstract:

The hydrogenation process in oil fields is a crucial step for improving oil quality and reducing pollutant emissions during crude oil processing. In the context of "dual carbon", the greenization of hydrogen supply mode has become a key factor in industry transformation. The traditional hydrogen production mode has a higher carbon emission intensity and is seriously out of sync with the low-carbon development requirements of the oil and gas industry. Therefore, it is of greater practical significance to develop green and safe hydrogen production methods. This paper uses a mixture of (NH₄)₂S₂O₈ and dicyandiamide as the precursor and prepares porous g-C₃N₄ (pg-C₃N₄) through a thermal polymerization method. The microstructure, light absorption capacity, chemical structure, and crystal structure of pg-C₃N₄ are analyzed by TEM, XRD, DRS, and FT-IR spectroscopy. The photocatalysis hydrogen production from water splitting and the degradation of pollutants over pg-C₃N₄ are also investigated. The results show that the specific surface area of pg-C₃N₄ is approximately 49 m²/g. The results show that the specific surface area of pg-C?N? is approximately 49 m2/g. Compared with bulk g-C?N?, pg-C?N? possesses a larger specific surface area and a relatively higher separation efficiency of photogenerated electron-hole pairs, thereby significantly enhancing its performance in water splitting for hydrogen production under visible light as well as its activity in decomposing Rhodamine B (RhB). Moreover, it can maintain good performance and structural stability. This paper provides a green hydrogen production method for the development of hydrogenation processes in oil fields.

Key words: Photocatalysis, g-C₃N₄, Porous structure, Hydrogen production

中图分类号:

TQ032.4

王天昊. 多孔氮化碳的绿色合成及光催化性能[J]. 石油化工高等学校学报, 2026, 39(3): 32-38.

Tianhao WANG. Green Synthesis and Photocatalytic Performance of Porous Carbon Nitride[J]. Journal of Petrochemical Universities, 2026, 39(3): 32-38.

0
/ / 推荐

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://journal.lnpu.edu.cn/syhg/CN/10.12422/j.issn.1006-396X.2026.03.004

https://journal.lnpu.edu.cn/syhg/CN/Y2026/V39/I3/32

图/表 8

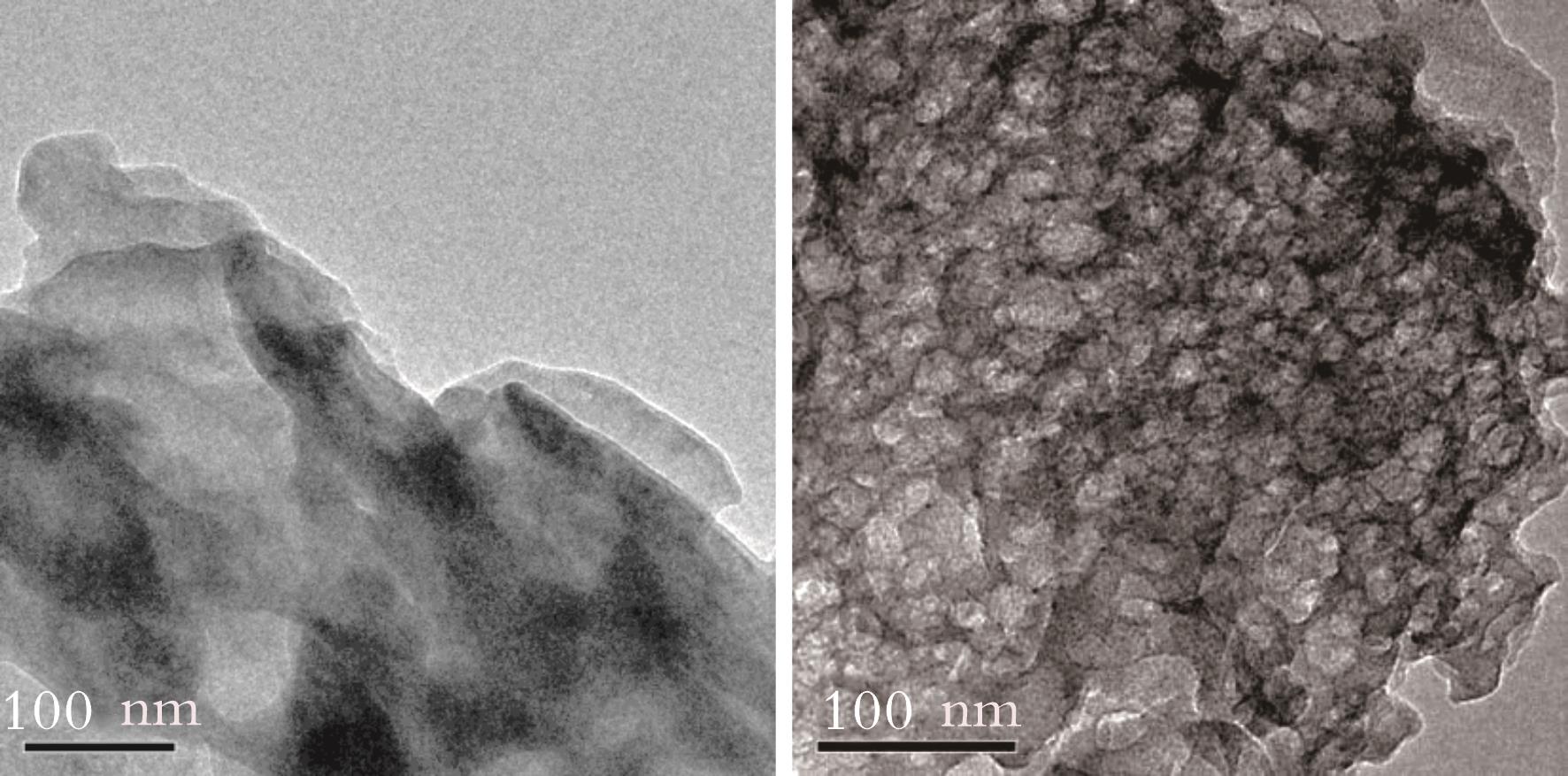

图1 颗粒状g-C3N4和pg-C3N4的TEM图（a）颗粒状g-C3N4 （b） pg-C3N4

Fig.1 TEM images of granular g-C3N4 and pg-C3N4

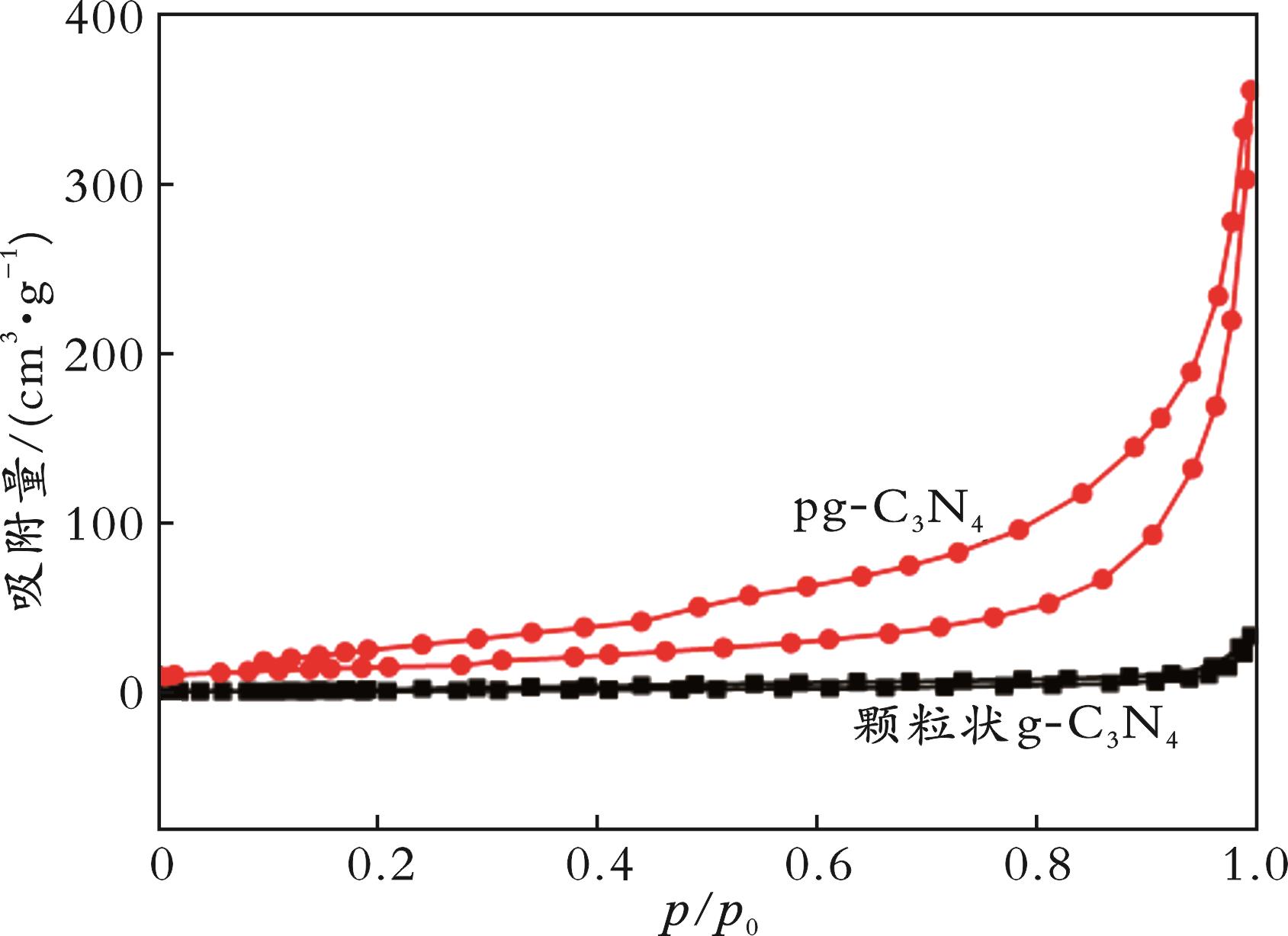

图2 颗粒状g-C3N4和pg-C3N4的N2吸附-脱附曲线

Fig.2 N2 adsorption-desorption isotherm curves of granular g-C3N4 and pg-C3N4

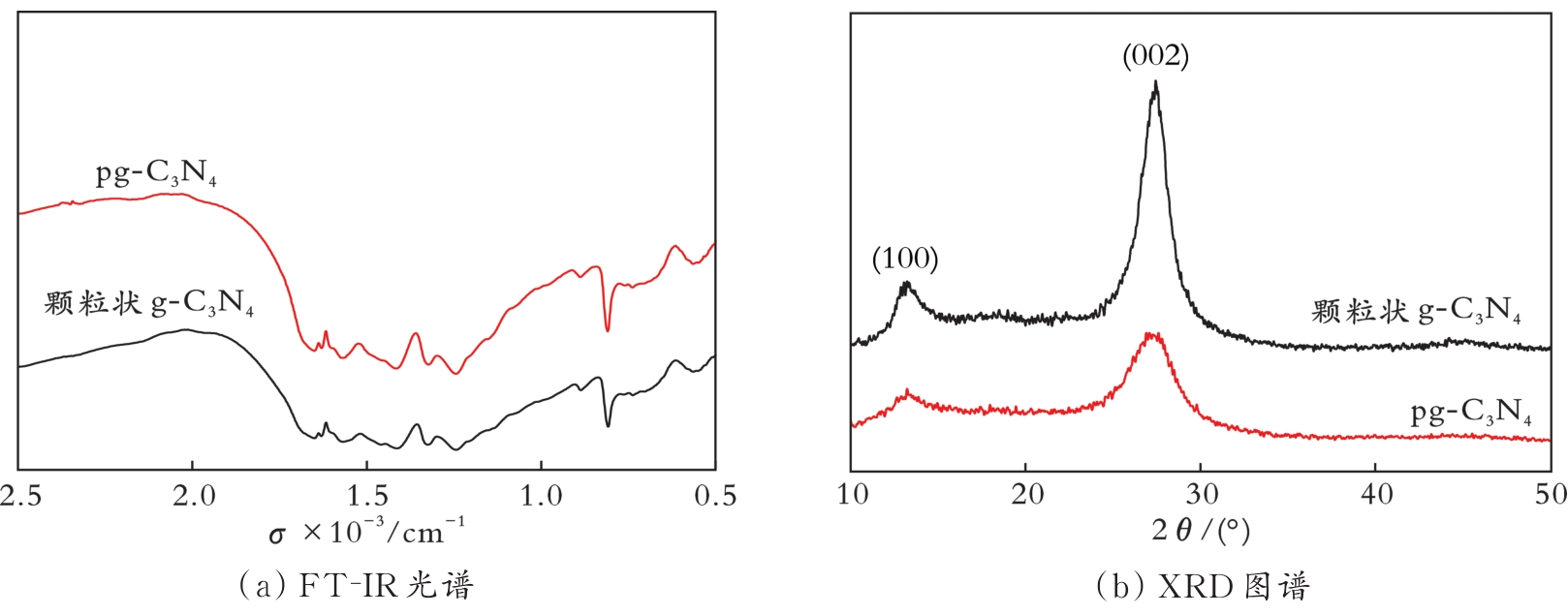

图3 颗粒状g-C3N4和pg-C3N4的FT-IR光谱和XRD图谱

Fig.3 FT-IR spectra and XRD patterns of granular g-C3N4 and pg-C3N4

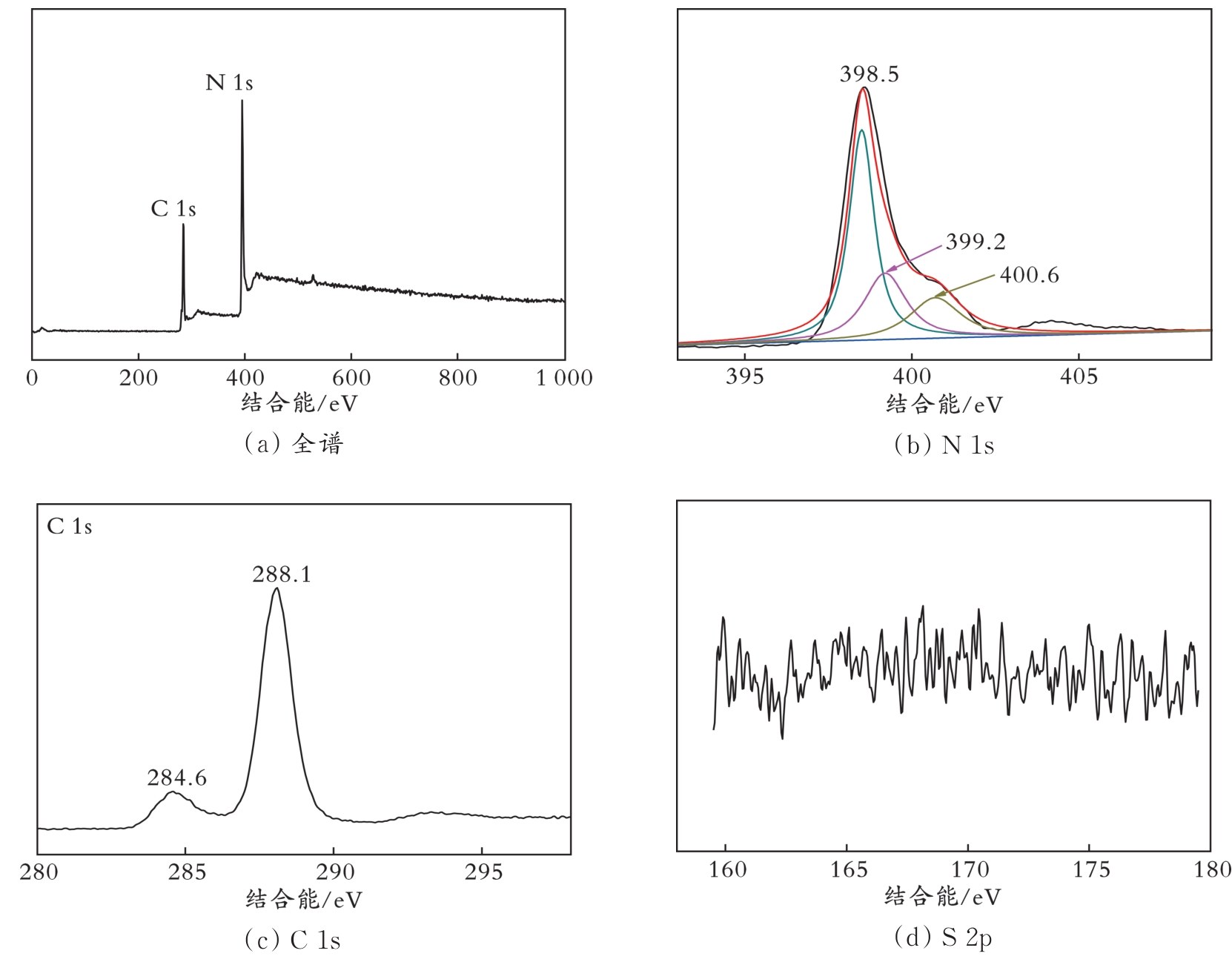

图4 pg-C3N4的XPS光谱

Fig.4 XPS spectrum of pg-C3N4

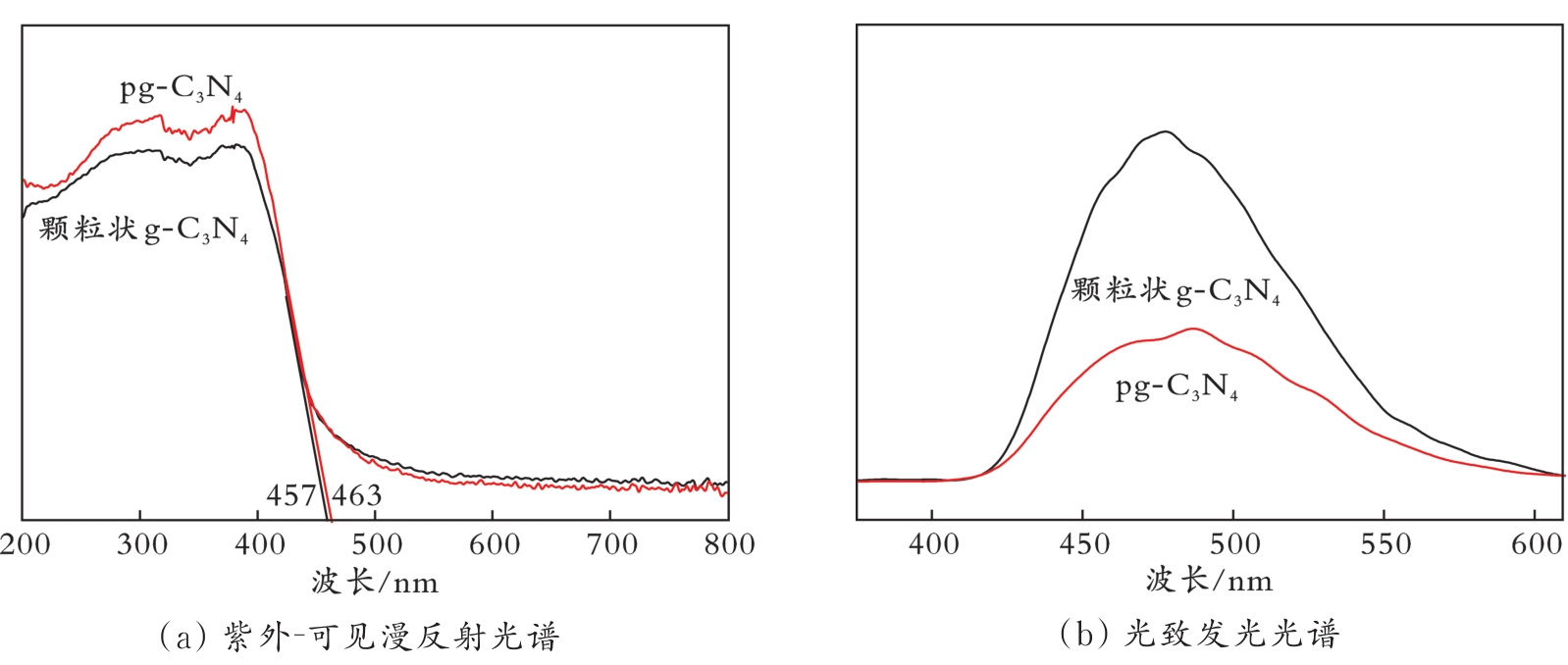

图5 颗粒状g-C3N4和pg-C3N4的紫外-可见漫反射光谱和光致发光光谱

Fig.5 Ultraviolet-visible diffuse reflection spectra and photoluminescence spectra of granular g-C3N4 and pg-C3N4

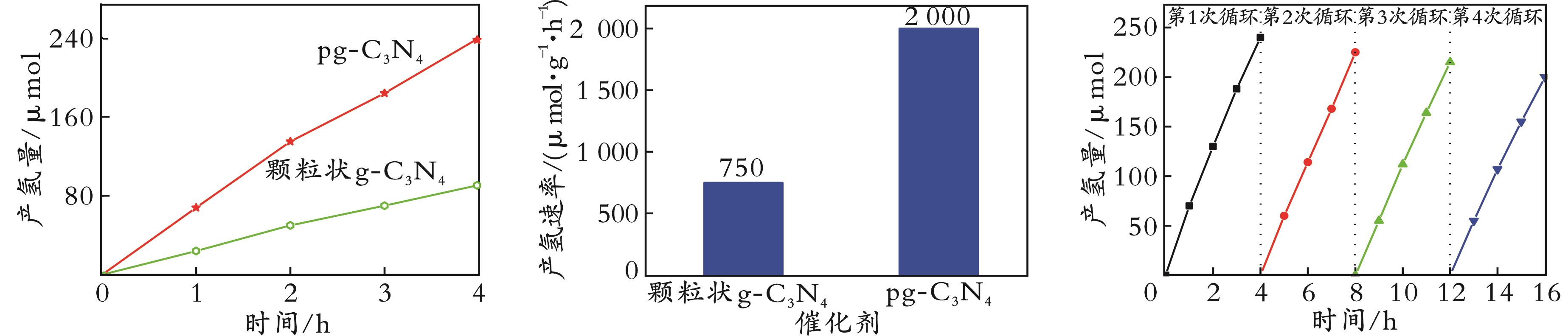

图6 催化剂的光解水产氢活性测试结果（a）氢气生成曲线（b）产氢速率（c） pg-C3N4循环产氢测试曲线

Fig.6 The photocatalytic hydrogen production activity test results of the catalyst

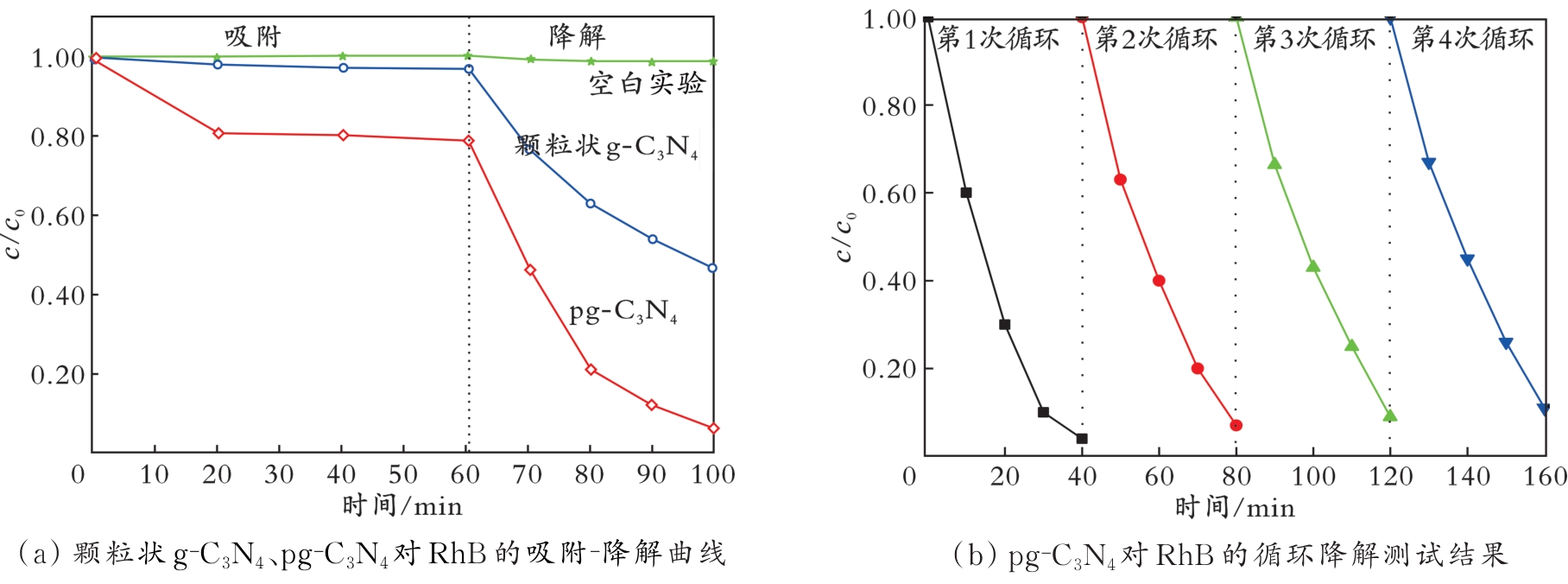

图7 催化剂的光催化降解活性

Fig.7 The photocatalytic degradation activity of the catalyst

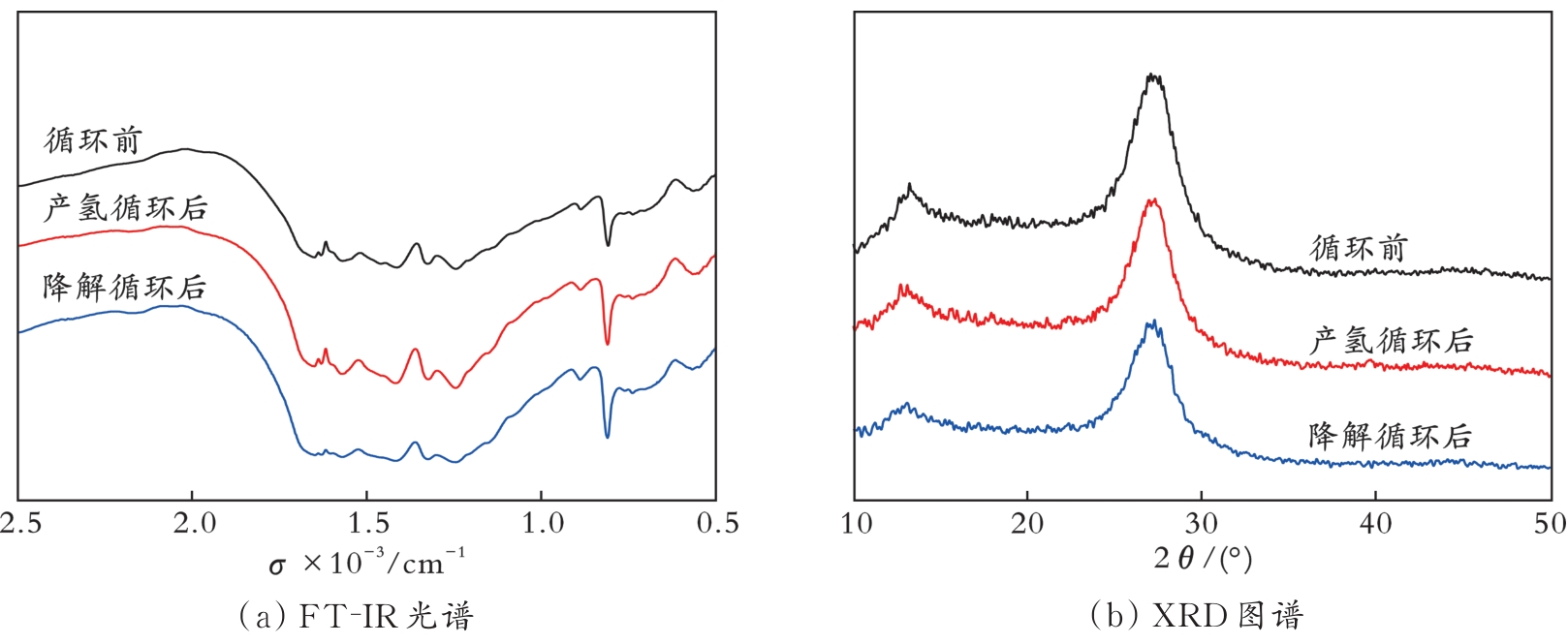

图8 循环前、产氢循环后和降解循环后pg-C3N4的FT-IR光谱和XRD图谱

Fig.8 FT-IR spectra and XRD patterns of pg-C3N4 before cycle, after hydrogen production cycle, and after degradation cycle

参考文献 16

[1]	孙海萍，张胜军，徐立昊，等. “双碳”目标下中国油气行业低碳发展措施与路径探讨［J］. 油气与新能源， 2021， 33（6）： 27-31.
	SUN H P， ZHANG S J， XU L H， et al. Discussion on low-carbon development measures and paths of China’s oil and gas industry under the goals of "dual carbon"［J］. Petroleum and New Energy， 2021， 33（6）： 27-31.
[2]	王庭伟，端木传嵩，孟新宇，等. 过渡金属硫化物催化剂性能优化与光催化水分解制氢研究进展［J］. 低碳化学与化工， 2024， 49（9）： 41-50.
	WANG T W， DUAN MU C S， MENG X Y， et al. Research progress in optimization of transition metal sulfide catalysts and hydrogen production from photocatalytic water splitting［J］. Low-Carbon Chemistry and Chemical Engineering， 2024， 49（9）： 41-50.
[3]	孙天奇，陈勇号，巫衡，等. BiOCl/g-C₃N₄-Br光催化降解罗丹明B［J］. 化工环保， 2024， 44（2）： 196-204.
	SUN T Q， CHEN Y H， WU H， et al. Photocatalytic degradation of RhB by BiOCl/g-C₃N₄-Br［J］. Environmental Protection of Chemical Industry， 2024， 44（2）： 196-204.
[4]	石怀川，石磊. 纳米碳颗粒/氮化碳复合材料的制备及光催化性能［J］. 辽宁石油化工大学学报， 2021， 41（4）： 41-45.
	SHI H C， SHI L. Preparation and photocatalytic properties of nanocarbon particles/carbon nitride［J］. Journal of Liaoning Petrochemical University， 2021， 41（4）： 41-45.
[5]	杨文科，卢连雪，李鹏，等. 光催化材料石墨相氮化碳的合成、改性及应用［J］. 石油化工高等学校学报， 2024， 37（1）： 43-51.
	YANG W K， LU L X， LI P， et al. Synthesis， modification and application of photocatalytic material graphite phase carbon nitride［J］. Journal of Petrochemical Universities， 2024， 37（1）： 43-51.
[6]	陈基鹏，杨阳佳子，李鹏，等. 石墨相氮化碳的制备、改性及应用［J］. 石油化工高等学校学报， 2023， 36（5）： 45-51.
	CHEN J P， YANG YANG J Z， LI P， et al. Preparation， modification， and application of graphitic phase carbon nitride［J］. Journal of Petrochemical Universities， 2023， 36（5）： 45-51.
[7]	秦于伟，王南，王松，等. g-C₃N₄/TiO₂复合材料的制备及可见光催化降解硝基苯［J］. 当代化工， 2024， 53（3）： 611-614.
	QIN Y W， WANG N， WANG S， et al. Preparation of g-C₃N₄/TiO₂ composite and visible light catalytic degradation of nitrobenzene［J］. Contemporary Chemical Industry， 2024， 53（3）： 611-614.
[8]	LIANG L， SHI L， WANG F X， et al. Synthesis and photo-catalytic activity of porous g-C₃N₄： Promotion effect of nitrogen vacancy in H₂ evolution and pollutant degradation reactions［J］. International Journal of Hydrogen Energy， 2019， 44（31）： 16315-16326.
[9]	ZHANG X， JIA C C， LIU J. Guanidine carbonate assisted supramolecular self-assembly for synthesizing porous g-C₃N₄ for enhanced photocatalytic hydrogen evolution［J］. International Journal of Hydrogen Energy， 2021， 46（38）： 19939-19947.
[10]	SHI L， LIANG L， WANG F X， et al. Polycondensation of guanidine hydrochloride into a graphitic carbon nitride semiconductor with a large surface area as a visible light photocatalyst［J］. Catalysis Science & Technology， 2014， 4（9）： 3235-3243.
[11]	LIU X L， WANG P， ZHAI H S， et al. Synthesis of synergetic phosphorus and cyano groups （CN） modified g-C₃N₄ for enhanced photocatalytic H₂ production and CO₂ reduction under visible light irradiation［J］. Applied Catalysis B-Environmental， 2018， 232： 521-530.
[12]	XU J， WANG Z P， ZHU Y F. Enhanced visible-light-driven photocatalytic disinfection performance and organic pollutant degradation activity of porous g-C₃N₄ nanosheets［J］. ACS Applied Materials & Interfaces， 2017， 9（33）： 27727-27735.
[13]	SHI L， WANG F X， SUN J M. The preparation of spherical mesoporous g-C₃N₄ with highly improved photocatalytic performance for H₂ production and rhodamine B degradation［J］. Materials Research Bulletin， 2019， 113： 115-121.
[14]	LIANG L， SHI L， WANG F X. Fabrication of large surface area nitrogen vacancy modified graphitic carbon nitride with improved visible-light photocatalytic performance［J］. Diamond and Related Materials， 2019， 91： 230-236.
[15]	LEI S， LIN L， WANG F X， et al. Ag₂CrO₄ nanoparticles loaded on two-dimensional large surface area graphite-like carbon nitride sheets： Simple synthesis and excellent photocatalytic performance［J］. Dalton Transactions， 2016， 45（13）： 5815-5824.
[16]	郭振莲，牟庆平，李新，等. CdS/CeO₂异质结纳米光催化剂催化还原CO₂的研究［J］. 石油炼制与化工， 2023， 54（6）： 46-54.
	GUO Z L， MU Q P， LI X， et al. Study on CO₂ reduction by CdS/CeO₂ heterojunction nano-photocatalyst［J］. Petroleum Processing and Petrochemicals， 2023， 54（6）： 46-54.
