低温环境下电化学储能器件性能研究进展

doi:10.12422/j.issn.1006-396X.2025.05.001

摘要/Abstract

摘要：

随着全球能源系统向可再生能源转型的加速推进，电化学储能器件在确保电力供应稳定性与促进能源高效利用方面扮演着愈发关键的角色。然而，低温环境成为制约电化学储能器件性能的一大挑战，特别是对应用广泛的锂离子电池而言，其充放电容量显著下降、内阻增加及循环寿命缩短等问题尤为突出，严重限制了其在寒冷地区等场景的商用化进程。为应对这一挑战，系统综述了当前针对低温环境下电化学储能器件性能的研究进展。首先，围绕核心研究焦点——电池正极材料及电解液体系的改性与优化，通过分析温度对电池材料性能的影响，系统阐述了低温条件下电池性能劣化的作用机制，包括导体材料电阻率升高、活性材料反应活性降低、电解液黏度增大等。其次，回顾并分析了提升低温条件下电池性能的电解液改性策略。此外，还阐述了优化储能器件低温性能的其他有效方式及其对改善电化学性能的作用机理。

关键词: 电化学储能器件, 低温条件, 电极材料, 电解液优化策略, 研究进展

Abstract:

As the global energy system accelerates its transition toward renewable energy,electrochemical energy storage devices play an increasingly vital role in ensuring power supply stability and promoting efficient energy utilization.However,low-temperature environments pose a significant challenge to the performance of electrochemical energy storage devices.Especially for widely used lithium-ion batteries,the problems such as significant decrease of charge and discharge capacity,increase of internal resistance and shortening of cycle life are particularly prominent,which seriously limits the commercialization development of lithium-ion batteries in cold regions and other scenarios.To address this challenge,this paper provides a systematic review of current research progress on the performance of electrochemical energy storage devices in low-temperature environments.First of all,focusing on the core research topic of modification and optimization of battery cathode materials and electrolyte systems.This study systematically elucidates the mechanism contributing to battery performance under low-temperature conditions,including changes in material resistivity,reduced reactivity of active materials,and increased viscosity of electrolyte materials.Then,the modification strategies of electrolyte to improve the performance of batteries under low temperature are reviewed and analyzed.In addition,other effective ways to optimize the low-temperature performance of energy storage devices and their mechanisms for improving the electrochemical performance are also expounded.

Key words: Electrochemical energy storage devices, Low temperature condition, Electrode materials, Eectrolyte optimization strategies, Research developments

中图分类号:

TQ152

郎笑石, 刘琳, 刘珈伊, 钟啸宇, 吴雨彤, 孙桦, 李金阳, 李嘉一, 吴雨珊. 低温环境下电化学储能器件性能研究进展[J]. 石油化工高等学校学报, 2025, 38(5): 1-10.

Xiaoshi LANG, Lin LIU, Jiayi LIU, Xiaoyu ZHONG, Yutong WU, Hua SUN, Jinyang LI, Jiayi LI, Yushan WU. Research Developments on the Performance of Electrochemical Energy Storage Devices in Low-Temperature Environments[J]. Journal of Petrochemical Universities, 2025, 38(5): 1-10.

0
/ / 推荐

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://journal.lnpu.edu.cn/syhg/CN/10.12422/j.issn.1006-396X.2025.05.001

https://journal.lnpu.edu.cn/syhg/CN/Y2025/V38/I5/1

图/表 4

图1 “纳米级”碳包覆LiFePO?与Fe?P共存结构的扫描电镜照片

Fig.1 SEM image of a nanoscale carbon-coated LiFePO4 and Fe2P coexisting structure

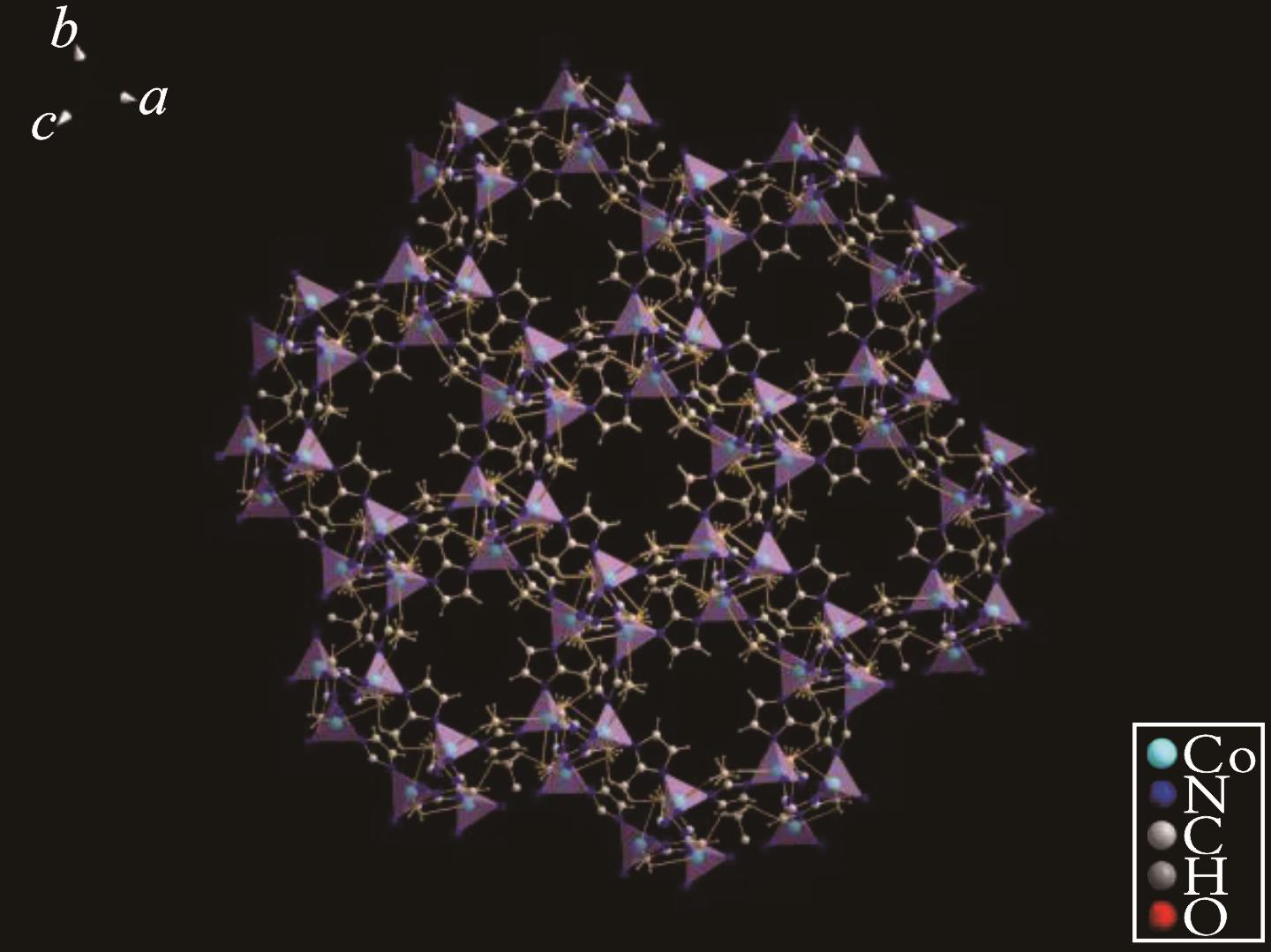

图2 ZIF-67有机金属框架材料结构图

Fig.2 Structural illustration of ZIF-67 metal-organic framework material

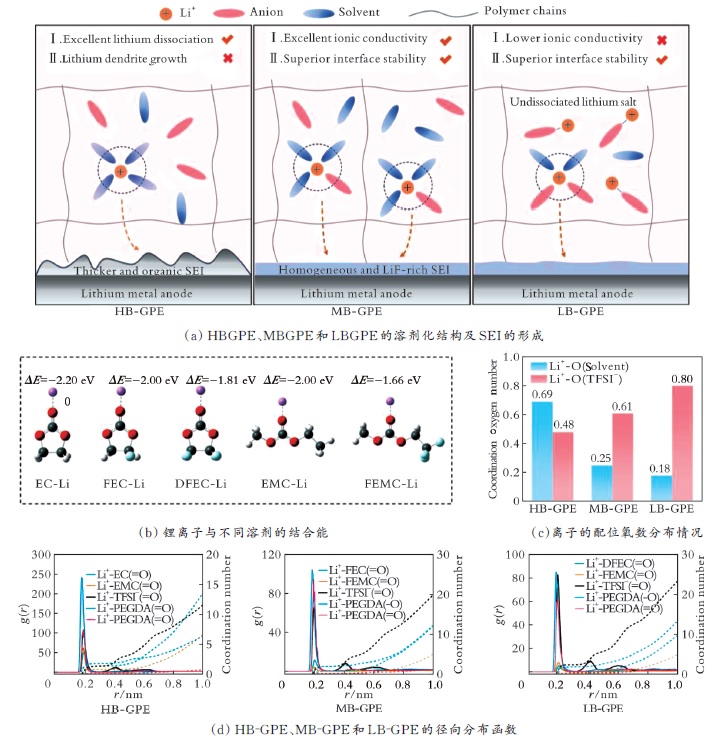

图3 胶体聚合物电解质的设计及溶剂化结构的研究

Fig.3 Design of the gel polymer electrolytes and investigation of the solvation structures

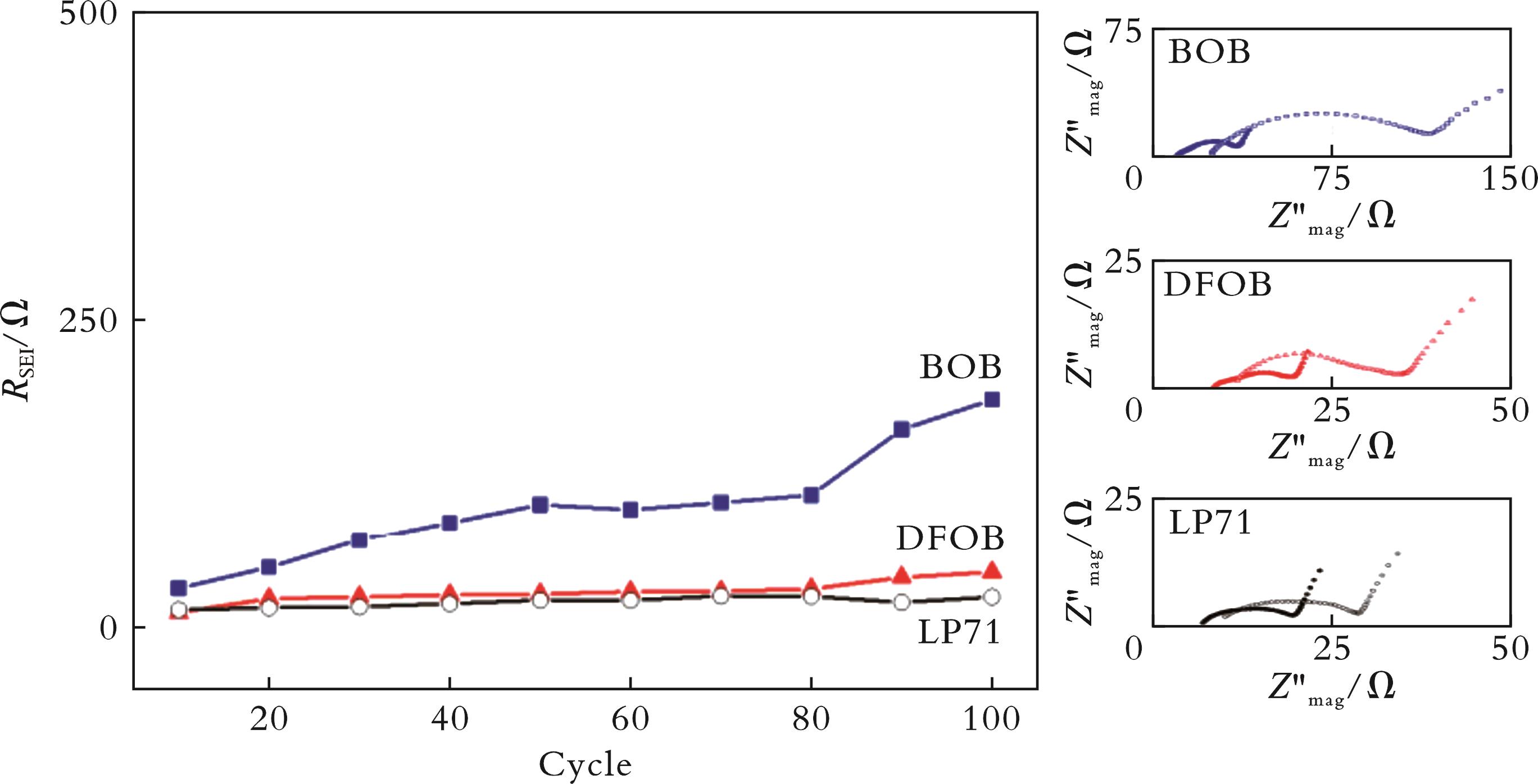

图4 不同添加剂对电解液界面稳定性的影响

Fig.4 Influence of different additives on electrolyte interface stability

参考文献 53

[1]	陈海生，李泓，徐玉杰，等.2022年中国储能技术研究进展［J］.能源科学与技术，2023，12（5）：1516-1552.
	CHEN H S，LI H，XU Y J，et al.Research progress on energy storage technologies of China in 2022［J］.Energy Storage Science and Technology，2023，12（5）：1516-1552.
[2]	ZHU F Y，WANG J，ZHANG Y Z，et al.Low-temperature lithium metal batteries achieved by synergistically enhanced screening Li⁺ desolvation kinetics［J］.Advanced Materials，2025，37（5）：2411601.
[3]	金明钢，赵新兵，沈垚，等.低温下锂离子电池研究进展［J］.电源技术，2007，31（11）：930-933.
	JIN M G，ZHAO X B，SHEN Y，et al.Development progress of low-temperature lithium-ion batteries［J］.Chinese Journal of Power Sources，2007，31（11）：930-933.
[4]	陈丽能，晏梦雨，梅志文，等.水系锌离子电池的研究进展［J］.无机材料学报，2017，32（3）：225-234.
	CHEN L N，YAN M Y，MEI Z W，et al.Research progress and prospect of aqueous zinc ion battery［J］.Journal of Inorganic Materials，2017，32（3）：225-234.
[5]	顾伟，曹征领，岳灵平，等.低温环境下全固态锂离子电池研究［J］.浙江电力，2021，40（4）：65-71.
	GU W，CAO Z L，YUE L P，et al.Research on all-solid-state lithium-ion battery in low temperature environment［J］.Zhejiang Electric Power，2021，40（4）：65-71.
[6]	曹虎山，徐晓玲.磷酸铁锂锂电池在低温环境下的充放电研究［J］.中国高新科技，2025（1）：38-39.
	CAO H S，XU X L.Research on charging and discharging of lithium iron phosphate batteries in low temperature environments［J］.China High and New Technology，2025（1）：38-39.
[7]	CHUNG S Y，BLOKING J T，CHIANG Y M.Electronically conductive phospho-olivines as lithium storage electrodes［J］.Nature Materials，2002，1（2）：123-128.
[8]	KAABI A，TLIHA M，BELGACEM Y B，et al.Influence of electrolyte concentration on the electrochemical characteristics of LaGaO₃ perovskite oxide as novel anode material for Ni/MH batteries［J］.Ceramics International，2017，43（17）：15743-15746.
[9]	ZHANG S，XU K，JOW T.Low-temperature performance of Li-ion cells with a LiBF₄-based electrolyte［J］.Journal of Solid State Electrochemistry，2003，7（3）：147-151.
[10]	SMART M C，RATNAKUMAR B V，WHITCANACK L D，et al.Improved low-temperature performance of lithium-ion cells with quaternary carbonate-based electrolytes［J］.Journal of Power Sources，2003，119-121：349-358.
[11]	赵世玺，郭双桃，赵建伟，等.锂离子电池低温特性研究进展［J］.硅酸盐学报，2016，44（1）：19-28.
	ZHAO S X，GUO S T，ZHAO J W，et al.Development on low-temperature performance of lithium ion batteries［J］.Journal of the Chinese Ceramic Society，2016，44（1）：19-28.
[12]	LEE S，NOGALES P M，JEONG S K，et al.Influence of electrolyte concentration on the electrochemical behavior of copper hexacyanoferrate as an active material for zinc-ion batteries［J］.Materials Science Forum，2024，1119：25-30.
[13]	TRESSAUD A，GROULT H.Fluorinated carbonaceous nanoparticles as active material in primary lithium battery［J］.Journal of Fluorine Chemistry，2019，219：1-9.
[14]	王政德，高凯雄，张斌.低温等离子体在电化学储能器件表面修饰的应用［J］.过程工程学报，2022，22（9）：1159-1168.
	WANG Z D，GAO K X，ZHANG B.Application of low-temperature plasma in surface modification of electrochemical energy storage devices［J］.The Chinese Journal of Process Engineering，2024，22（9）：1159-1168.
[15]	李鹏飞，李威，许春阳，等.锂离子电池三元正极材料掺杂改性研究进展［J］.郑州大学学报（理学版），2024，56（5）：80-87.
	LI P F，LI W，XU C Y，et al.Progress of research on foreign-ion doping of ternary cathode materials for lithium-ion batteries［J］.Journal of Zhengzhou University（Natural Science Edition），2024，56（5）：80-87.
[16]	周娅，时润娜，郎笑石，等.钠离子电池正极材料V₂O₅研究进展［J］.石油化工高等学校学报，2022，35（6）：38-47.
	ZHOU Y，SHI R N，LANG X S，et al. Research progress of V₂O₅ cathode material for sodium-ion batteries［J］.Journal of Petrochemical Universities，2022，35（6）：38-47.
[17]	XU Y F，CHEN Z Y，WANG J Q，et al.Design of quasi-metal–organic frameworks for solid polymer electrolytes enabling an ultra-stable interface with Li metal anode［J］.Angewandte Chemie International Edition，2025，64（4）：e202416170.
[18]	钟盛文，杨海洋，张骞，等.锰基正极材料混合锂离子电池高低温性能研究［J］.电源技术，2015，39（5）：893-895.
	ZHONG S W，YANG H Y，ZHANG Q，et al.Research on high/low temperature performance of mixed manganese-based cathode materials of lithium-ion battery［J］.Chinese Journal of Power Sources，2015，39（5）：893-895.
[19]	ZHOU Y，GU C D，ZHOU J P，et al.Effect of carbon coating on low temperature electrochemical performance of LiFePO₄/C by using polystyrene sphere as carbon source［J］.Electrochimica Acta，2011，56（14）：5054-5059.
[20]	QIN R H，WEI Y Q，ZHAI T Y，et al.LISICON structured Li₃V₂（PO₄）₃ with high rate and ultralong life for low-temperature lithium-ion batteries［J］.Journal of Materials Chemistry A，2018，20（6）：9737-9746.
[21]	刘伯文，王新东.锂离子电池电解液的研究［J］.电池，2005，35（2）：87-88.
	LIU B W，WANG X D.Study on the electrolytes of Li-ion batteries［J］.Battery Bimonthly，2005，35（2）：87-88.
[22]	徐艺，李晨，任祥，等.低温锂离子电容器研究进展［J］.工程科学学报，2024，46（8）：1509-1520.
	XU Y，LI C，REN X，et al.Research progress in low-temperature lithium-ion capacitors［J］.Chinese Journal of Engineering，2024，46（8）：1509-1520.
[23]	XU K.Electrolytes and interphases in Li-ion batteries and beyond［J］.Chemical Reviews，2014，114（23）：11503-11618.
[24]	晏然.锂离子电池用低温电解液添加剂的研究进展［J］.江西化工，2024，40（3）：5-9.
	YAN R.Research progress of low temperature electrolyte additives for lithium ion batteries［J］.Jiangxi Chemical Industry，2024，40（3）：5-9.
[25]	AURBACH D，GAMOLSKY K，MARKOVSKY B，et al.On the use of vinylene carbonate （VC） as an additive to electrolyte solutions for Li-ion batteries［J］.Electrochimica Acta，2002，47（9）：1423-1439.
[26]	ZHANG Q，ZHANG D.The SEI regulation effect of sulfonic acid lactone［J］.The Journal of Electrochemical Society，2016，138：5-25.
[27]	CROCE F，PERSI L，RONCI F，et al.Nanocomposite polymer electrolytes and their impact on the lithium battery technology［J］.Solid State Ionics，2000，135（1-4）：47-52.
[28]	樊小勇，张帅，朱永强，等.三维多孔铜和锌镀层协同构筑无枝晶锂金属电极［J］.化学学报，2022，80（4）：517-525.
	FAN X Y，ZHANG S，ZHU Y Q，et al.Construction of dendrite-free Lithium metal electrode using three-dimensional porous copper and zinc coatings［J］.Acta Chimica Sinica，2022，80（4）：517-525.
[29]	SHMATOK Y V，GLOBA N I，SIROSH V A，et al.Ni and La doping effect on characteristics of LiMn₂O₄ as cathode material for lithium-ion batteries with aprotic and aqueous electrolytes［J］.Journal of Applied Electrochemistry，2025，55（8）：2013-2027.
[30]	江晓雪，宋飞，胡广宇，等.锂盐添加剂和成膜添加剂对锂电池低温电化学性能的影响［J］.人工晶体学报，2025，54（1）：146-157.
	JIANG X X，SONG F，HU G Y，et al.Effect of lithium salt and film-forming additives on the low temperature electrochemical performance of lithium-ion batteries［J］.Journal of Synthetic Crystals，2025，54（1）：146-157.
[31]	QIN W M，LI Z L，SU W X，et al.Porous organic cage-based quasi-solid-state electrolyte with cavity-induced anion-trapping effect for long-life lithium metal batteries［J］.Nano-Micro Letters，2024，17（1）：38.
[32]	ZHANG H.Fluorination-enhanced interfacial stability and kinetics for lithium metal batteries at low temperatures［J］.Advanced Energy Materials，2020，10（34）：2001350.
[33]	段佳月，陈金秀，张晋豪，等.低温锂离子电池的动力学挑战及解决策略［J］.电源技术，2024，48（8）：1484-1493.
	DUAN J Y，CHEN J X，ZHANG J H，et al.Kinetics challenges and resolution strategies for low temperature lithium-ion batteries［J］.Chinese Journal of Power Sources，2024，48（8）：1484-1493.
[34]	HU X S，ZHENG Y S，HOWEY D A，et al.Battery warm-up methodologies at subzero temperatures for automotive applications：Recent advances and perspectives［J］.Progress in Energy and Combustion Science，2020，77：100806.
[35]	JAGUEMONT J，BOULON L，DUBÉ Y.A comprehensive review of lithium-ion batteries used in hybrid and electric vehicles at cold temperatures［J］.Applied Energy，2016，164：99-114.
[36]	LEE D Y，CHO C W，WON J P，et al.Performance characteristics of mobile heat pump for a large passenger electric vehicle［J］.Applied Thermal Engineering，2013，50（1）：660-669.
[37]	赵培生，莫伟标，李泽艺，等.某纯电动汽车空调采暖性能试验研究［J］.汽车工业研究，2022（1）：48-51.
	ZHAO P S，MO W B，LI Z Y，et al.Experimental study on heating performance of air conditioning in a pure electric vehicle［J］.Auto Industry Research，2022（1）：48-51.
[38]	YANG C，YIN H S，LOU Q，et al.Ultrafast microwave heated form-stable thermal package providing operating temperature for PEO all-solid-state batteries［J］.Energy Storage Materials，2023，60：102814.
[39]	WANG C Y，ZHANG G S，GE S H，et al.Lithium-ion battery structure that self-heats at low temperatures［J］.Nature，2016，529（7587）：515-518.
[40]	罗静，赵冬妮，梁宏成，等.钠离子电池用电解质钠盐的研究进展［J］.现代化工，2025，45（4）：30-36.
	LUO J，ZHAO D N，LIANG H C，et al.Advances in electrolyte sodium salt for sodium-ion batteries［J］.Modern Chemical Industry，2025，45（4）：30-36.
[41]	TSURUMAKI A，BRANCHI M，RIGANO A，et al.Bis（oxalato）borate and diﬂuoro（oxalato）borate-based ionic liquids as electrolyte additives to improve the capacity retention in high voltage lithium batteries［J］.Electrochimica Acta，2019，315：17-23.
[42]	WANG M，WANG Q C，DING X Y，et al.The prospect and challenges of sodium-ion batteries for low-temperature conditions［J］.Interdisciplinary Materials，2022，1（3）：373-395.
[43]	SHI T Z，HOU R L，GUO S H.A perspective on low-temperature electrolytes for sodium-ion batteries［J］.Energy Lab，2023，1（3）：230003.
[44]	HUBBLE D，BROWN D E，ZHAO Y Z，et al.Liquid electrolyte development for low-temperature lithium-ion batteries［J］.Energy & Environmental Science，2022，15（2）：550-578.
[45]	ZHANG W，SUN X L，TANG Y X，et al.Lowering charge transfer barrier of LiMn₂O₄ via nickel surface doping to enhance Li⁺ intercalation kinetics at subzero temperatures［J］.Journal of the American Chemical Society，2019，141（36）：14038-14042.
[46]	CHEN J C，YU D D，ZHU Q N，et al.Low-temperature high-areal-capacity rechargeable potassium-metal batteries［J］.Advanced Materials，2022，34（36）：e2205678.
[47]	TANG Z，WANG H，WU P F，et al.Electrode-electrolyte interfacial chemistry modulation for ultra-high rate sodium-ion batteries［J］.Angewandte Chemie （International ed.in English），2022，61（18）：e202200475.
[48]	张广相，马驰，付传凯，等.钠离子电池低温电解质的研究进展与挑战［J］.化学进展，2023，35（10）：1534-1543.
	ZHANG G X，MA C，FU C K，et al.Advances and challenges of low-temperature electrolyte for sodium-ion batteries［J］.Progress in Chemistry，2023，35（10）：1534-1543.
[49]	孙秋阳，李秀春，张晋豪，等.电池负极材料之硬炭的结构、储能应用、制备研究现状及趋势［J］.煤炭加工与综合利用，2024（10）：72-78.
	SUN Q Y，LI X C，ZHANG J H，et al.Research progress and development trend of hard carbon［J］.Coal Processing and Comprehensive Utilization，2024（10）：72-78.
[50]	ZHANG H M，ZHAO S W，HUANG F Q.A comparative overview of carbon anodes for nonaqueous alkali metal-ion batteries［J］.Journal of Materials Chemistry A，2021，9（48）：27140-27169.
[51]	SAUREL D，ORAYECH B，XIAO B W，et al.From charge storage mechanism to performance：A roadmap toward high specific energy sodium-ion batteries through carbon anode optimization［J］.Advanced Energy Materials，2018，8（17）：1703268.
[52]	MANTHIRAM A，YU X W，WANG S F.Lithium battery chemistries enabled by solid-state electrolytes［J］.Nature Reviews Materials，2017，2（4）：16103.
[53]	赵飞，陈英华，马征，等.钾离子电池低温电解质的研究进展［J］.储能科学与技术，2024，13（7）：2308-2316.
	ZHAO F，CHEN Y H，MA Z，et al.Advances in low-temperature electrolytes for potassium-ion batteries［J］.Energy Storage Science and Technology，2024，13（7）：2308-2316.
