Preparation and Performance Analysis of Anion Exchange Membranes Modified with Chromotropic Acid Grafted 18⁃Crown⁃6 Ether on Polyvinyl Alcohol

doi:10.12422/j.issn.1672-6952.2025.05.002

Abstract

Abstract:

The quaternary ammonium group (QA) commonly used in conventional anion exchange membranes (AEMs) has a low dissociation constant with OH^-, resulting in poor conductivity. The crown ether group can significantly enhance the ion exchange capacity (IEC) and OH^- conduction efficiency of AEMs due to its ability to form positively charged complexes with alkali metal cations. Meanwhile, the ether bond in the crown ether ring exhibits good alkali and chemical stability. In view of the above advantages, a series of AEMs grafted with bi?crown ethers were successfully prepared by grafting dibenzo?18?crown?6?ether?modified polyvinyl alcohol (PVA) via metastable acid. The results showed that the bi?crown ether anion?exchange membranes exhibited higher OH^-selectivity and chemical stability compared with the mono?crown ether membrane materials; the prepared AEMs exhibited good OH^- selectivity and chemical stability in terms of electrical conductivity (conductivity of 165.5 mS/cm at 80 ℃), mechanical properties (tensile strength of 47 MPa at room temperature), and alkali stability (only 4.52% decrease in conductivity after immersion in KOH at a concentration of 6 mol/L for 168 h), and the high efficiency electrolysis of water to produce hydrogen based on platinum charcoal as the anode material, and the efficiency of electrolytic reduction reached 80%.

Key words: Electrolysis of water for hydrogen production, Anion exchange membrane, 18?Crown?6 ether, Polyvinyl alcohol, Conductivity

摘要：

传统阴离子交换膜（AEMs）中常用的季铵基（QA）与OH^-解离常数较低，导致其电导率较差。冠醚基团因其能与碱金属阳离子形成带正电荷的络合物，可显著提升AEMs的离子交换容量（IEC）和OH?传导效率。同时，冠醚环中的醚键具有良好的碱稳定性和化学稳定性。鉴于以上优点，通过变色酸接枝二苯并?18?冠?6?醚改性聚乙烯醇（PVA），成功制备了一系列接枝双冠醚的AEMs。结果表明，与单冠醚膜材料相比，双冠醚阴离子交换膜展现了更高的OH^-选择性和化学稳定性；所制备的AEMs在电导率（80 ℃温度下电导率为165.5 mS/cm）、机械性能（室温下拉伸强度为47 MPa）和碱稳定性（在浓度为6 mol/L的KOH中浸泡168 h，电导率仅降低4.52%）方面表现出色，且以铂炭为阳极材料实现了高效的电解水制氢过程，电解还原效率达到80%。

关键词: 电解水制氢, 阴离子交换膜, 二苯并?18?冠?6?醚, 聚乙烯醇, 电导率

CLC Number:

TQ623.7

Ningda ZHANG, Lulu WANG, Yang ZHANG, Fan ZHANG, Jilin WANG. Preparation and Performance Analysis of Anion Exchange Membranes Modified with Chromotropic Acid Grafted 18⁃Crown⁃6 Ether on Polyvinyl Alcohol[J]. Journal of Liaoning Petrochemical University, 2025, 45(5): 9-17.

张宁达, 王璐璐, 张扬, 张帆, 王吉林. 变色酸接枝18⁃冠⁃6⁃醚改性聚乙烯醇阴离子交换膜的制备及性能分析[J]. 辽宁石油化工大学学报, 2025, 45(5): 9-17.

Figures/Tables 14

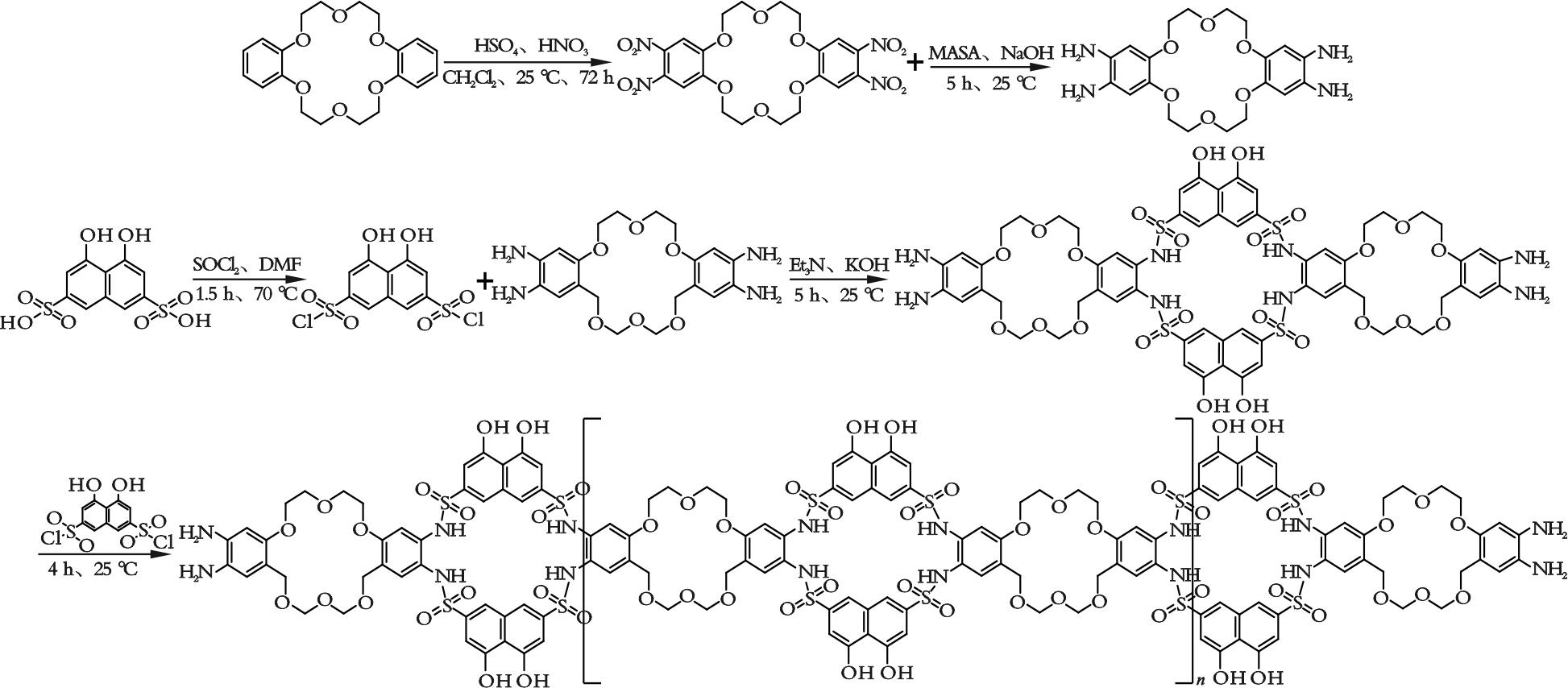

Fig.1 Synthesis route of D?C

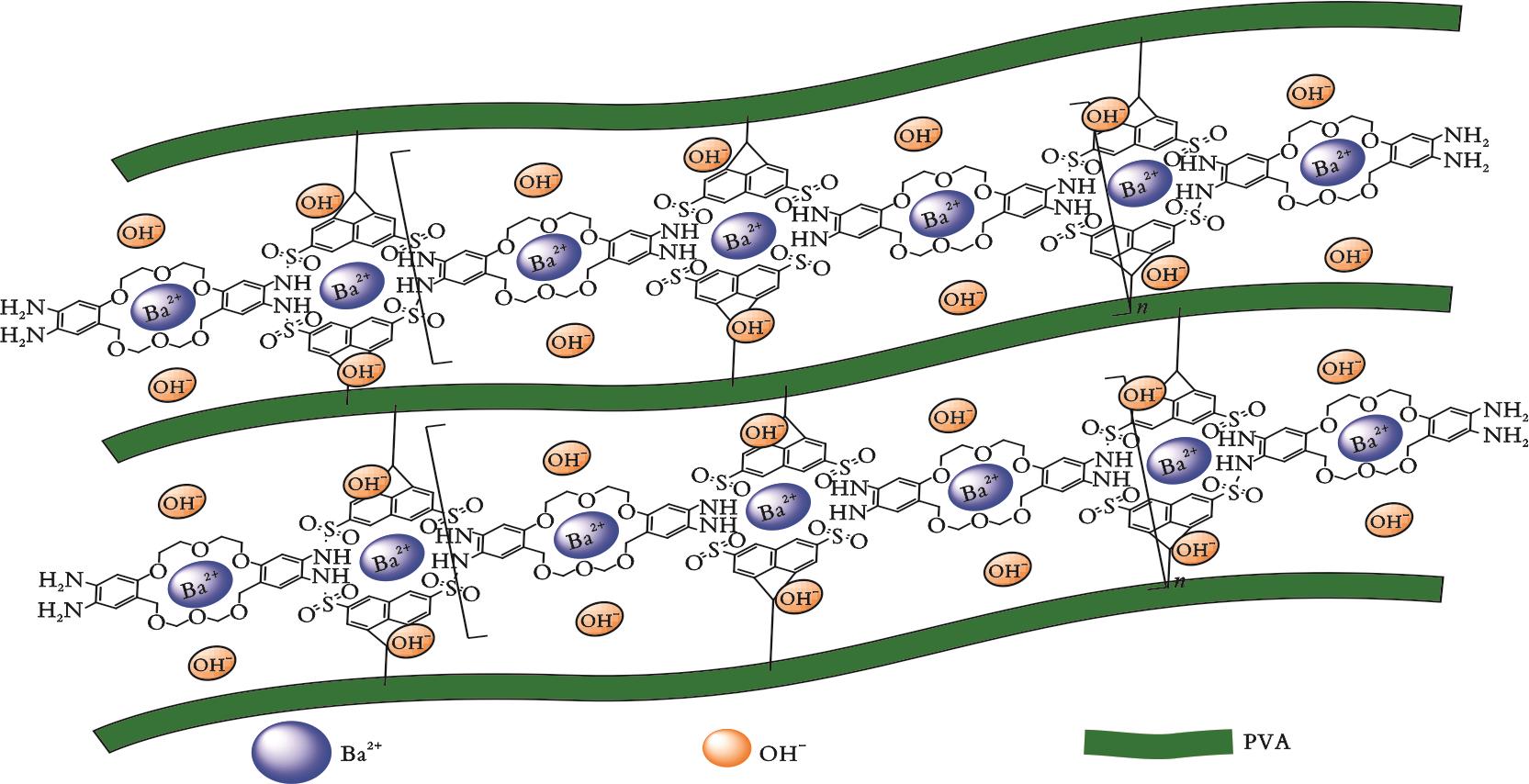

Fig.2 Schematic Structure of D?C X ?P AEMs

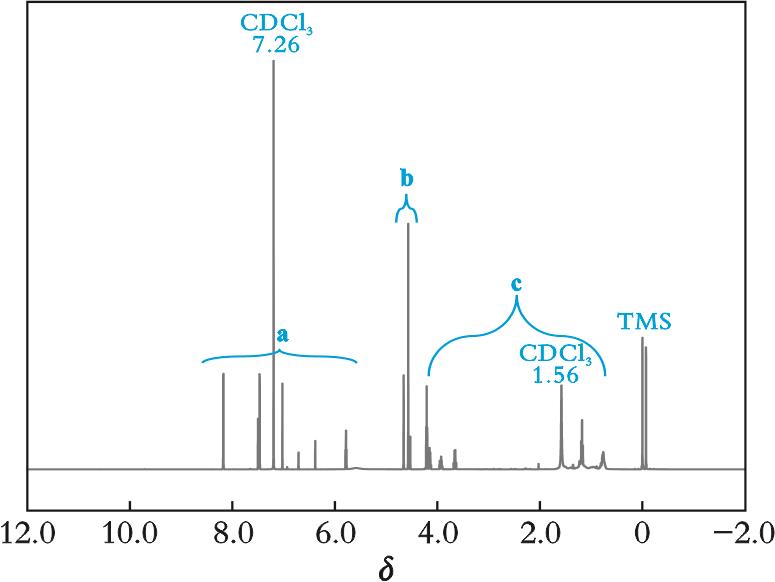

Fig.3 1H NMR spectrum of D?C30%?P AEM

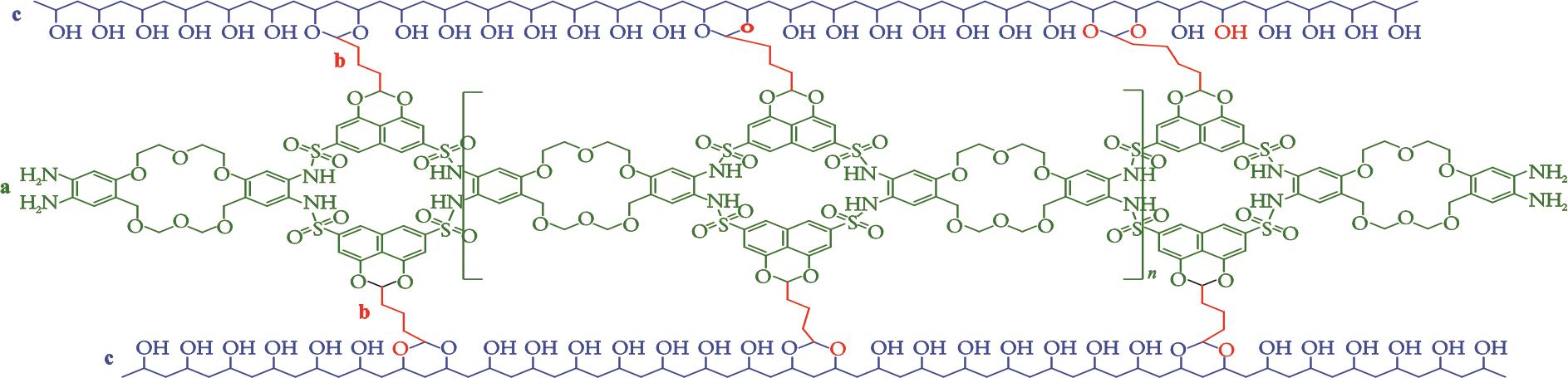

Fig.4 Structural sketch of the D?C30%?P AEM

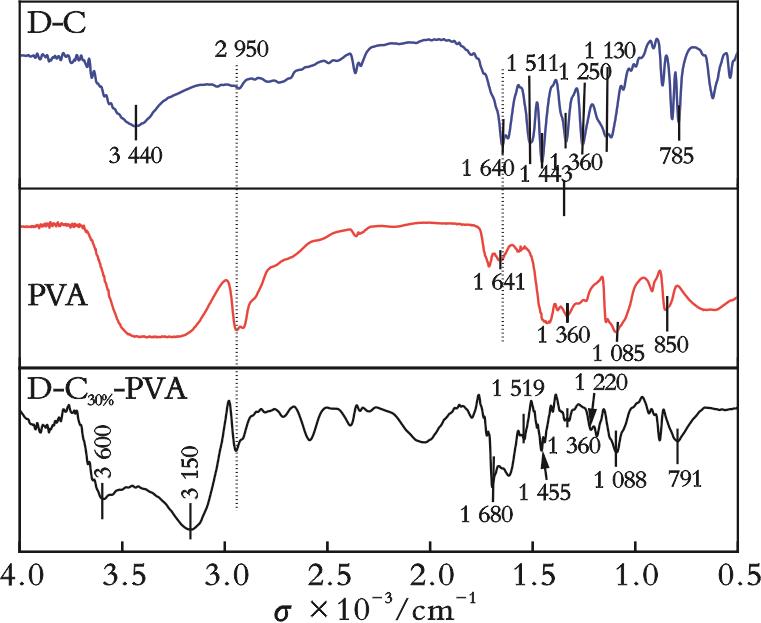

Fig.5 Infrared spectra of D?C, PVA, and D?C30%?P AEMs

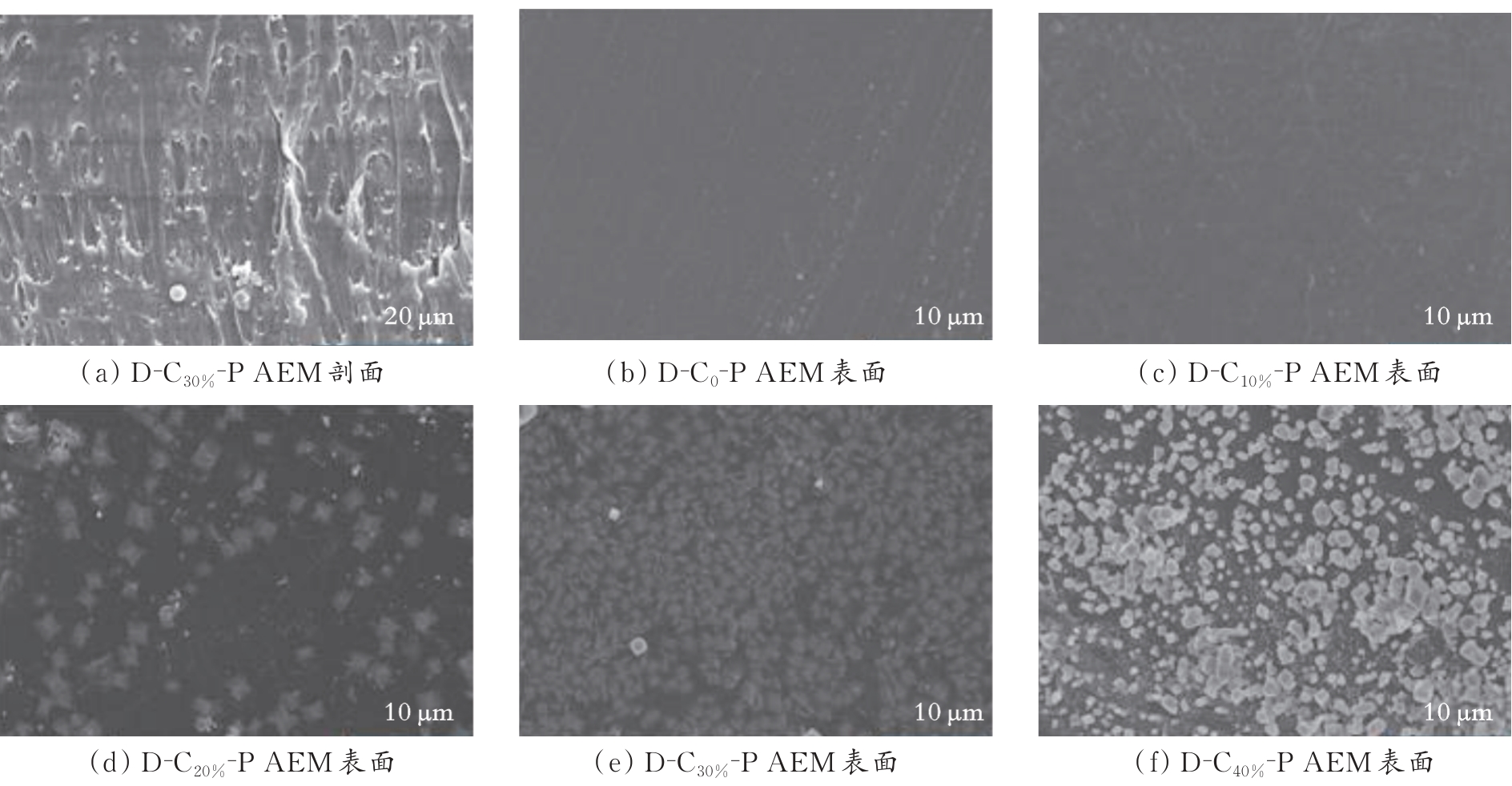

Fig.6 D?C30%?P AEM profile and SEM image of the surface of D?C X ?P AEMs

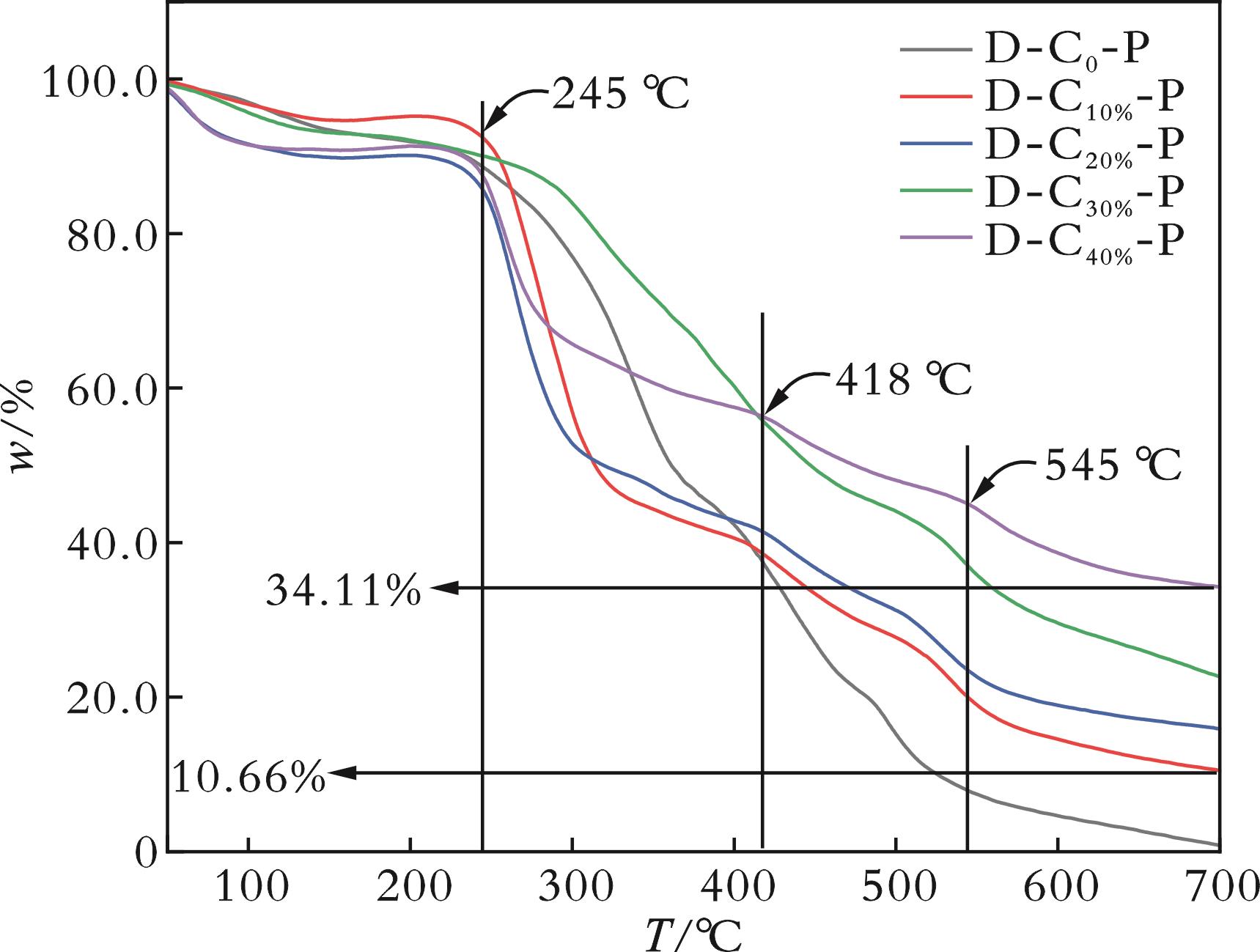

Fig.7 Thermogravimetric curves of D?C X ?P AEMs

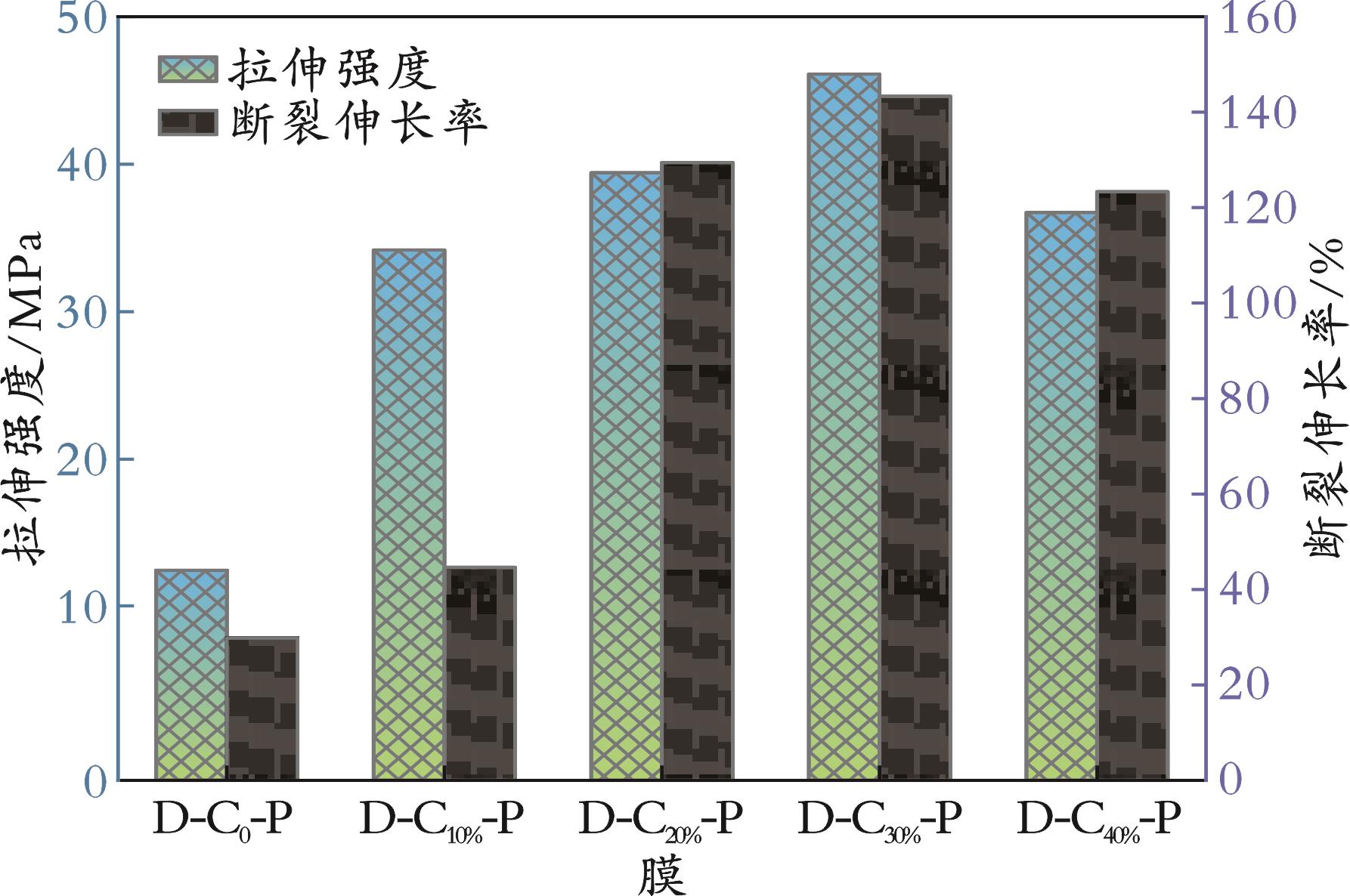

Fig.8 Tensile strength and elongation at break of D?C X ?P AEMs

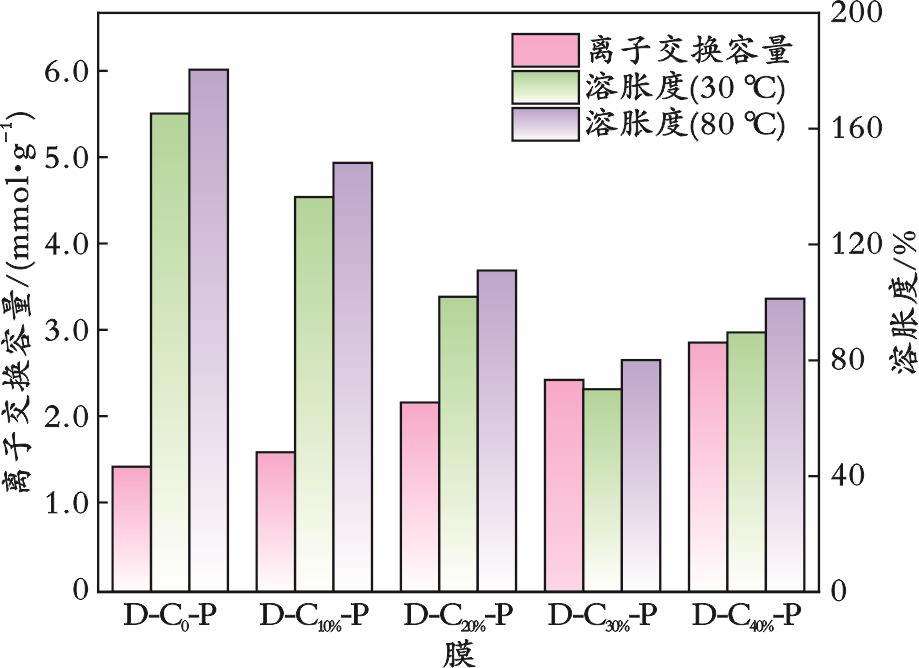

Fig.9 Ion exchange capacity and solubility of D?CX?P AEMs

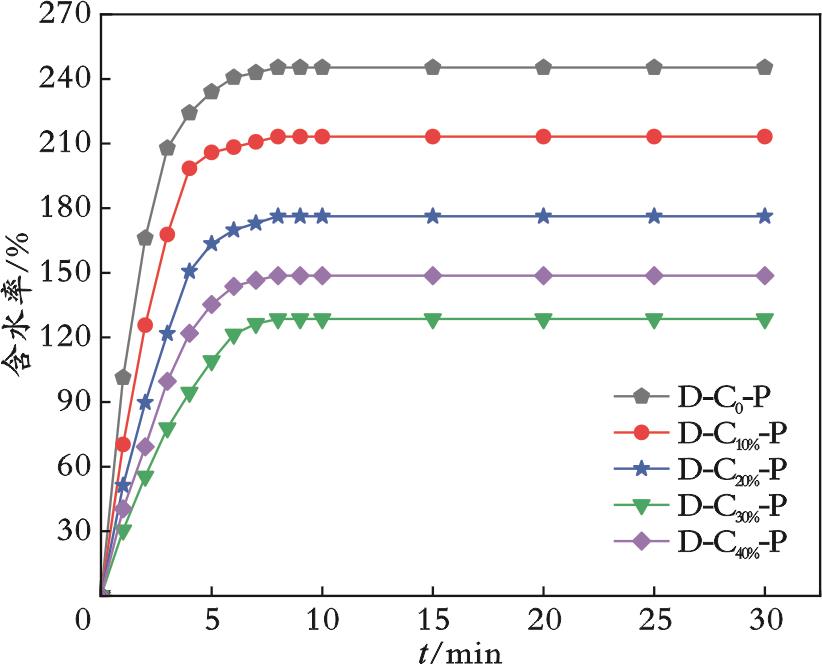

Fig.10 Water content versus time curve of D?C X ?P AEMs

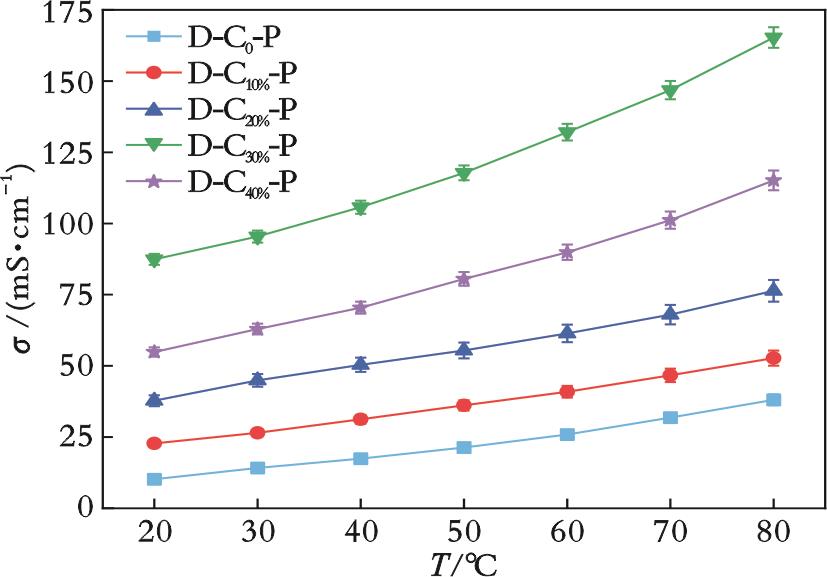

Fig.11 Conductivity variation curves of D?C X ?P AEMs

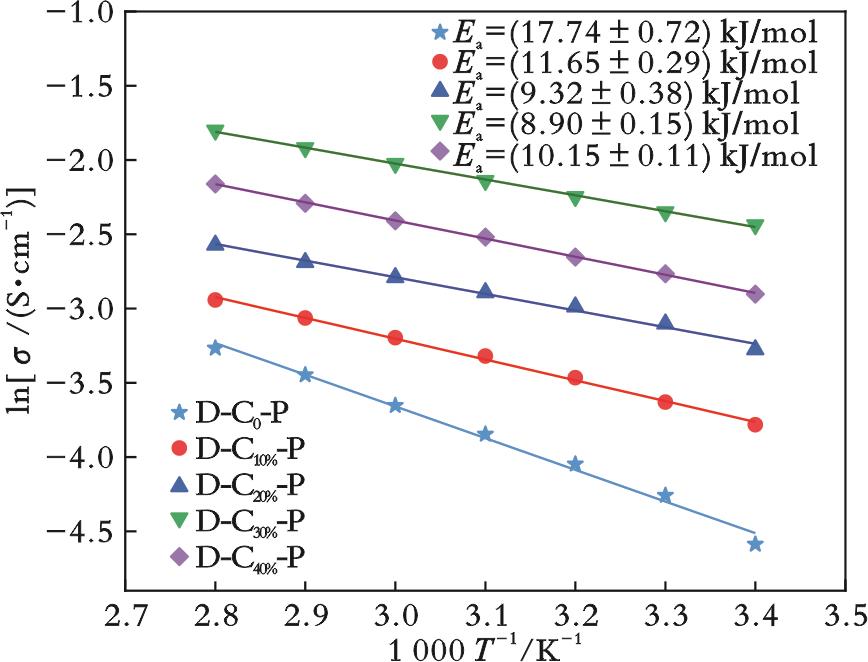

Fig.12 Arrhenius curves for D?C X ?P AEMs

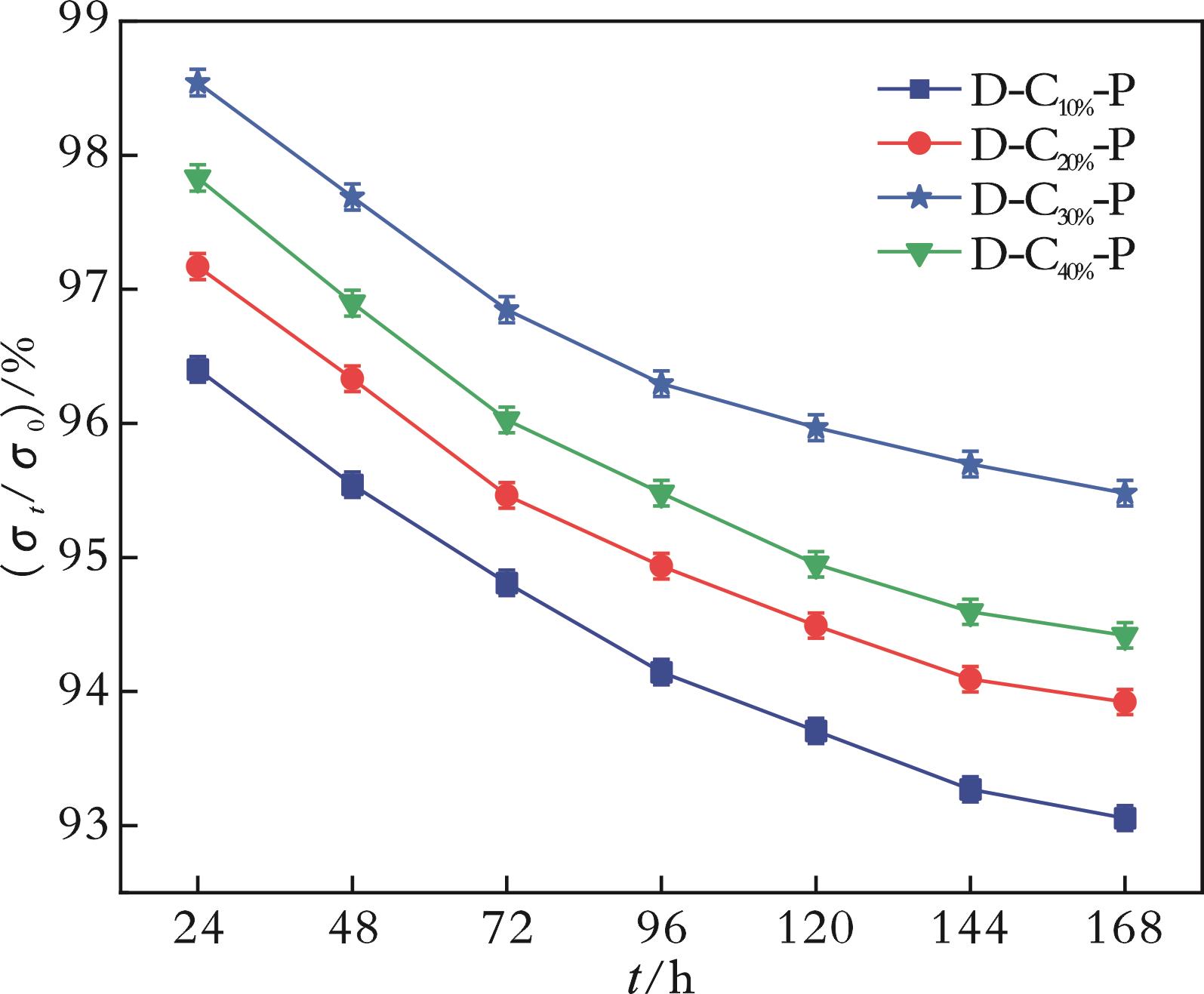

Fig.13 Alkali stability versus time curve of D?C X ?P AEMs

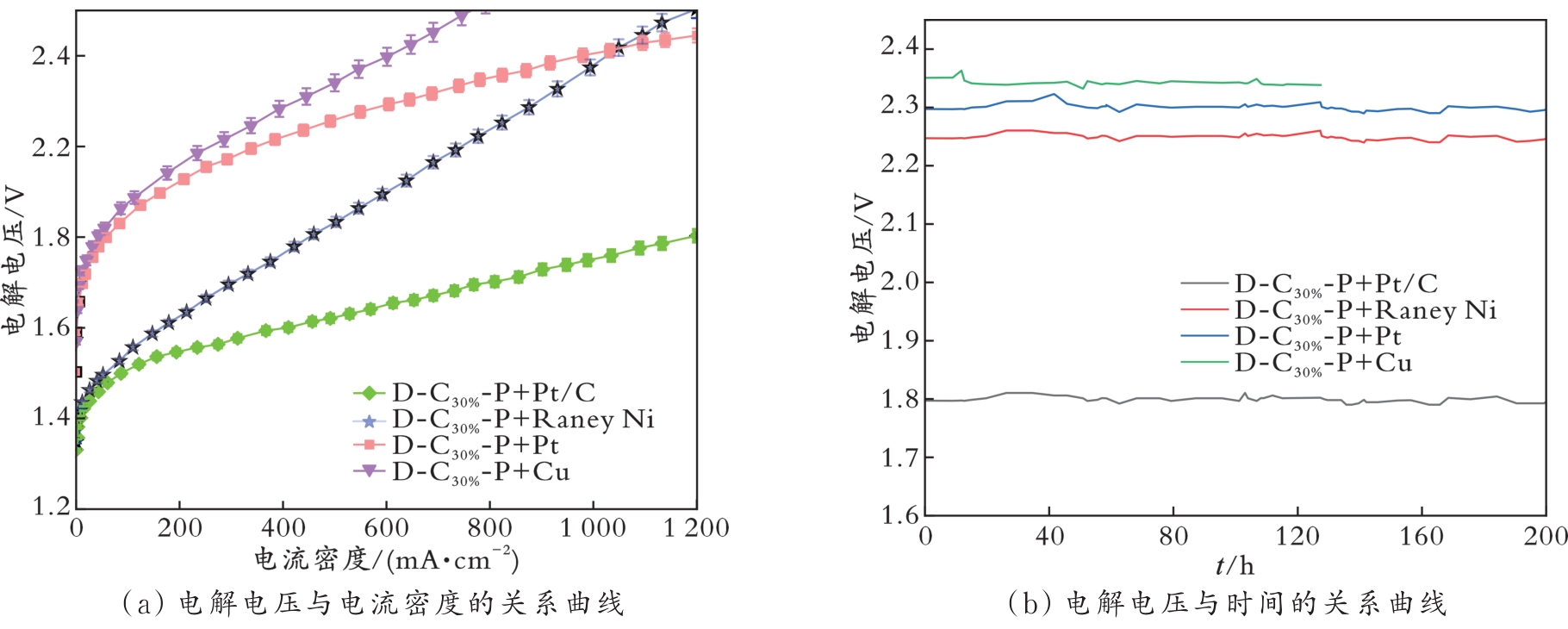

Fig.14 Electrolyzed water to hydrogen performance chart
