As the demand for energy storage escalates, sodium⁃ion batteries （SIBs） are increasingly in the spotlight due to their low cost and the plentiful availability of sodium resources. Particularly, hard carbon anode materials have emerged as a focal point of research, attributed to their superior cyclic stability and elevated energy density. This review delves into the advancements in hard carbon anode materials for SIBs, encompassing the screening and design of HCs precursors, surface modifications, pore structure adjustments, carbonization induction, heteroatom doping strategies, and additional tactics to augment the performance of HCs. By thoroughly examining the influence of HCs's pore structure, surface functional groups, and microstructure on the sodium storage mechanism, the review explores the potential for optimizing HCs performance through various fabrication processes. Furthermore, the article addresses the interfacial reaction mechanisms between HCs and electrolytes, along with possible avenues for enhancing HCs's cycling and rate capabilities through interface engineering. Ultimately, the review anticipates the future trajectory of HCs technology, including the design of nanostructures, surface modifications, and green manufacturing processes, underscoring the pressing need for the development of high⁃performance, cost⁃effective, and environmentally benign SIBs.
Keywords：Sodium⁃ion batteries
;
Hard carbon anode
;
Electrochemical performance
;
Material preparation
;
Interface engineering
Chang LIU, Yanqi WANG, Baixun ZHOU, Wenqi ZHUO, Zhenbo WANG. Research Progress on Hard Carbon Anode Materials for Sodium⁃Ion Batteries: From Material Design to Electrochemical Performance Optimization. Journal of Petrochemical Universities[J], 2025, 38(3): 1-9 DOI:10.12422/j.issn.1006-396X.2025.03.001

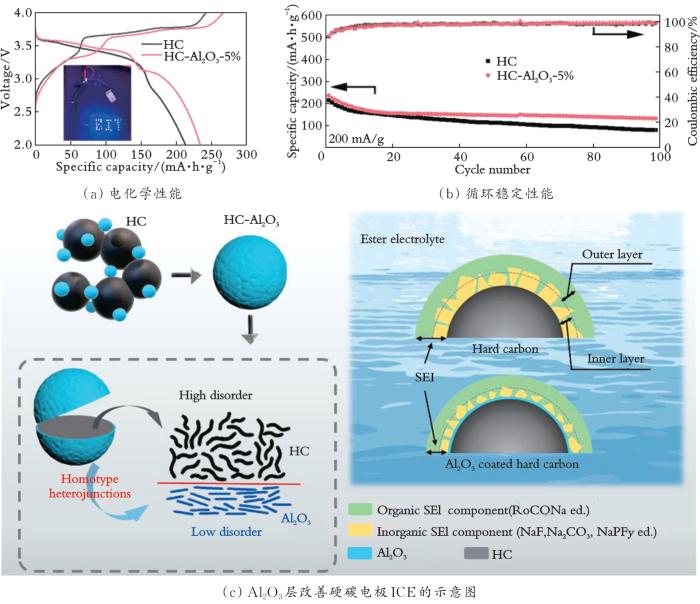

Fig.2
Schematic diagram of electrochemical performance, cycling stability, and Al2O3 layer improvement of hard carbon electrode ICE by surface modification of hard carbon[33]
随着碳化温度的升高，硬碳的石墨化程度增加，更多的开孔转化为闭孔，比表面积减小。同时，在此过程中缺陷和氧元素含量降低，由活性位点吸附引起的不可逆容量降低，有利于ICE的提升。但是，碳化温度的升高也会使碳层间距减小，不利于Na+的嵌入和脱嵌，导致电极比容量下降。针对这一矛盾，研究者在前驱体中引入金属离子催化剂催化碳化。T.LI等[42]等的研究结果表明，通过与前驱体的螯合作用引入Ni+，可促进多孔结构和石墨纳米晶体的形成，在提高比容量的同时可保证较高的ICE（见图5（a）—（b））。J.H.ZHAO等[43]开发了离子辅助催化策略，并研究了离子类型和浓度对性能的影响。结果表明，该策略将纸张衍生的前驱体浸渍适当浓度的Mn2+溶液，使Mn2+与天然纤维素上的含氧官能团交联，实现了对硬碳石墨化程度的精准调控，消除了缺陷，保持了Na+的有效路径；在20 mA /g的电流密度下，可逆比容量由247.0 mA·h/g增加到336.8 mA·h/g，ICE由86.5%提升到92.1%。
ZENG Z Q， MURUGESAN V， HAN K S， et al. Non⁃flammable electrolytes with high salt⁃to⁃solvent ratios for Li⁃ion and Li⁃metal batteries［J］. Nature Energy， 2018， 3（8）： 674⁃681.
JIA X B， WANG J Q， LIU Y F， et al. Facilitating layered oxide cathodes based on orbital hybridization for sodium⁃ion batteries： Marvelous air stability， controllable high voltage， and anion redox chemistry［J］. Advanced Materials， 2024， 36（15）： e2307938.
LIU Z B， SHEN J D， FENG S H， et al. Ultralow volume change of P2⁃type layered oxide cathode for Na⁃ion batteries with controlled phase transition by regulating distribution of Na+［J］. Angewandte Chemie⁃International Edition， 2021， 60（38）： 20960⁃20969.
LIU Z B， WU J， ZENG J， et al. Co⁃free layered oxide cathode material with stable anionic redox reaction for sodium⁃ion batteries［J］. Advanced Energy Materials， 2023， 13（29）： 2301471.
ZHANG Y， SUN W P， LUO Z Z， et al. Functionalized few⁃layer black phosphorus with super⁃wettability towards enhanced reaction kinetics for rechargeable batteries［J］. Nano Energy， 2017， 40： 576⁃586.
ZHENG Y H， WANG Y S， LU Y X， et al. A high⁃performance sodium⁃ion battery enhanced by macadamia shell derived hard carbon anode［J］. Nano Energy， 2017， 39： 489⁃498.
SENGUTTUVAN P， ROUSSE G， SEZNEC V， et al. Na2Ti3O7： Lowest voltage ever reported oxide insertion electrode for sodium ion batteries［J］. Chemistry of Materials， 2011， 23（18）： 4109⁃4111.
TANG X H， XIE F， LU Y X， et al. Intrinsic effects of precursor functional groups on the Na storage performance in carbon anodes［J］. Nano Research， 2023， 16（11）： 12579⁃12586.
ZHANG B， GHIMBEU C M， LABERTY C， et al. Correlation between microstructure and Na storage behavior in hard carbon［J］. Advanced Energy Materials， 2016， 6（1）： 1501588.
TANG Z， ZHANG R， WANG H Y， et al. Revealing the closed pore formation of waste wood⁃derived hard carbon for advanced sodium⁃ion battery［J］. Nature Communications， 2023， 14（1）： 6024.
ARISTOTE N T， ZOU K Y， DI A D， et al. Methods of improving the initial coulombic efficiency and rate performance of both anode and cathode materials for sodium⁃ion batteries［J］. Chinese Chemical Letters， 2022， 33（2）： 730⁃742.
WANG Y G， WANG W. Study on preparation of tin diselenide nanosheets and their sodium storage behaviors［J］. Low⁃Carbon Chemistry and Chemical Engineering， 2023， 48（6）： 76⁃82.
ZHANG M H， LI Y， WU F， et al. Boost sodium⁃ion batteries to commercialization： Strategies to enhance initial coulombic efficiency of hard carbon anode［J］. Nano Energy， 2021， 82： 105738.
AU H， ALPTEKIN H， JENSEN A C S， et al. A revised mechanistic model for sodium insertion in hard carbons［J］. Energy & Environmental Science， 2020， 13（10）： 3469⁃3479.
ZHU Z C， LI L， WANG H T， et al. Research progress in organic polymer electrolytes for sodium ion batteries［J］. Contemporary Chemical Industry， 2024， 53（6）： 1457⁃1462.
LI Q， LIU X S， TAO Y， et al. Sieving carbons promise practical anodes with extensible low⁃potential plateaus for sodium batteries［J］. National Science Review， 2022， 9（8）： nwac084.
XU X J， LI F K， ZHANG D C， et al. Facile construction of CoSn/Co3Sn2@C nanocages as anode for superior lithium⁃/sodium⁃ion storage［J］. Carbon Neutralization， 2023， 2（1）： 54⁃62.
JIN A M. Busan national university in south Korea develops efficient negative electrode material for sodium ion batteries［J］. Petroleum Processing and Petrochemicals， 2023， 54（4）： 14.
ZHANG H M， ZHANG W F， MING H， et al. Design advanced carbon materials from lignin⁃based interpenetrating polymer networks for high performance sodium⁃ion batteries［J］. Chemical Engineering Journal， 2018， 341： 280⁃288.
ARIE A A， TEKIN B， DEMIR E， et al. Hard carbons derived from waste tea bag powder as anodes for sodium ion battery［J］. Materials Technology， 2019， 34（9）： 515⁃524.
MURUGANANTHAM R， WANG F M， LIU W R. A green route N， S⁃doped hard carbon derived from fruit⁃peel biomass waste as an anode material for rechargeable sodium⁃ion storage applications［J］. Electrochimica Acta， 2022， 424： 140573.
LEE H V， HAMID S B A， ZAIN S K. Conversion of lignocellulosic biomass to nanocellulose： Structure and chemical process［J］. The Scientific World Journal， 2014， 2014： 631013.
WAN Y H， LIU Y， CHAO D L， et al. Recent advances in hard carbon anodes with high initial coulombic efficiency for sodium⁃ion batteries［J］. Nano Materials Science， 2023， 5（2）： 189⁃201.
XIE F， XU Z， GUO Z Y， et al. Achieving high initial coulombic efficiency for competent Na storage by microstructure tailoring from chiral nematic nanocrystalline cellulose［J］. Carbon Energy， 2022， 4（5）： 914⁃923.
ZHANG X， DONG X L， QIU X， et al. Extended low⁃voltage plateau capacity of hard carbon spheres anode for sodium ion batteries［J］. Journal of Power Sources， 2020， 476： 228550.
LU Y X， ZHAO C L， QI X G， et al. Pre⁃oxidation⁃tuned microstructures of carbon anodes derived from pitch for enhancing Na storage performance［J］. Advanced Energy Materials， 2018， 8（27）： 1800108.
WANG H， LIU S T， LEI C， et al. P⁃doped hard carbon material for anode of sodium ion battery was prepared by using polyphosphoric acid modified petroleum asphalt as precursor［J］. Electrochimica Acta， 2024， 477： 143812.
LI Y M， HU Y S， QI X G， et al. Advanced sodium⁃ion batteries using superior low cost pyrolyzed anthracite anode： Towards practical applications［J］. Energy Storage Materials， 2016， 5： 191⁃197.
LI R， YANG B R， HU A J， et al. Heteroatom screening and microcrystal regulation of coal⁃derived hard carbon promises high⁃performance sodium⁃ion batteries［J］. Carbon， 2023， 215： 118489.
LI Y M， XU S Y， WU X Y， et al. Amorphous monodispersed hard carbon micro⁃spherules derived from biomass as a high performance negative electrode material for sodium⁃ion batteries［J］. Journal of Materials Chemistry A， 2015， 3（1）： 71⁃77.
YU C X， LI Y， REN H X， et al. Engineering homotype heterojunctions in hard carbon to induce stable solid electrolyte interfaces for sodium⁃ion batteries［J］. Carbon Energy， 2023， 5（1）： e220.
YU C X， LI Y， WANG Z H， et al. Surface engineering based on in situ electro⁃polymerization to boost the initial coulombic efficiency of hard carbon anode for sodium⁃ion battery［J］. Rare Metals， 2022， 41（5）： 1616⁃1625.
ADAMSON A， VÄLI R， PAALO M， et al. Peat⁃derived hard carbon electrodes with superior capacity for sodium⁃ion batteries［J］. RSC Advances， 2020， 10（34）： 20145⁃20154.
LI Y Q， LU Y X， MENG Q S， et al. Regulating pore structure of hierarchical porous waste cork⁃derived hard carbon anode for enhanced Na storage performance［J］. Advanced Energy Materials， 2019， 9（48）： 1902852.
MORISHITA T， TSUMURA T， TOYODA M， et al. A review of the control of pore structure in MgO⁃templated nanoporous carbons［J］. Carbon， 2010， 48（10）： 2690⁃2707.
ZHANG B， XI J X， CAO Y A， et al. Research progress of hard carbon anode of sodium⁃ion batteries based on visualization analysis［J］. Journal of Petrochemical Universities， 2022， 35（6）： 1⁃9.
KAMIYAMA A， KUBOTA K， IGARASHI D， et al. MgO⁃template synthesis of extremely high capacity hard carbon for Na⁃ion battery［J］. Angewandte Chemie （International ed. in English）， 2021， 60（10）： 5114⁃5120.
LI T， LIU Z Q， GU Y J， et al. Hierarchically porous hard carbon with graphite nanocrystals for high⁃rate sodium ion batteries with improved initial coulombic efficiency［J］. Journal of Alloys and Compounds， 2020， 817： 152703.
ZHAO J H， HE X X， LAI W H， et al. Catalytic defect⁃repairing using manganese ions for hard carbon anode with high⁃capacity and high⁃initial⁃coulombic⁃efficiency in sodium⁃ion batteries［J］. Advanced Energy Materials， 2023， 13（18）： 2300444.
ZHANG H M， ZHANG W F， HUANG F Q. Graphene inducing graphitization： Towards a hard carbon anode with ultrahigh initial coulombic efficiency for sodium storage［J］. Chemical Engineering Journal， 2022， 434： 134503.
HE X X， ZHAO J H， LAI W H， et al. Soft⁃carbon⁃coated， free⁃standing， low⁃defect， hard⁃carbon anode to achieve a 94% initial coulombic efficiency for sodium⁃ion batteries［J］. ACS Applied Materials & Interfaces， 2021， 13（37）： 44358⁃44368.
LI X W， SUN J Y， ZHAO W X， et al. Intergrowth of graphite⁃like crystals in hard carbon for highly reversible Na⁃ion storage［J］. Advanced Functional Materials， 2022， 32（2）： 2106980.

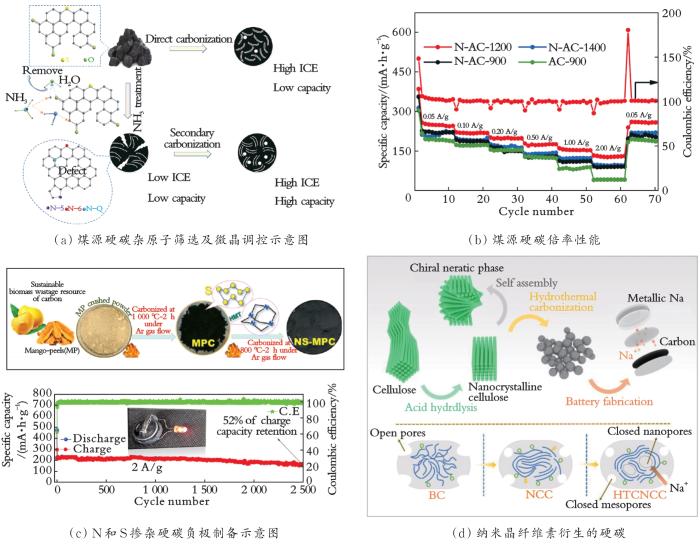

Hard carbon prepared by different precursors and their electrochemical properties<sup>[<xref ref-type="bibr" rid="R21">21</xref>-<xref ref-type="bibr" rid="R24">24</xref>,<xref ref-type="bibr" rid="R26">26</xref>]</sup>Fig.12 硬碳表面修饰
Hard carbon prepared by different precursors and their electrochemical properties<sup>[<xref ref-type="bibr" rid="R21">21</xref>-<xref ref-type="bibr" rid="R24">24</xref>,<xref ref-type="bibr" rid="R26">26</xref>]</sup>Fig.12 硬碳表面修饰
Hard carbon prepared by different precursors and their electrochemical properties<sup>[<xref ref-type="bibr" rid="R21">21</xref>-<xref ref-type="bibr" rid="R24">24</xref>,<xref ref-type="bibr" rid="R26">26</xref>]</sup>Fig.12 硬碳表面修饰
... [33]Schematic diagram of electrochemical performance, cycling stability, and Al<sub>2</sub>O<sub>3</sub> layer improvement of hard carbon electrode ICE by surface modification of hard carbon<sup>[<xref ref-type="bibr" rid="R33">33</xref>]</sup>Fig.2

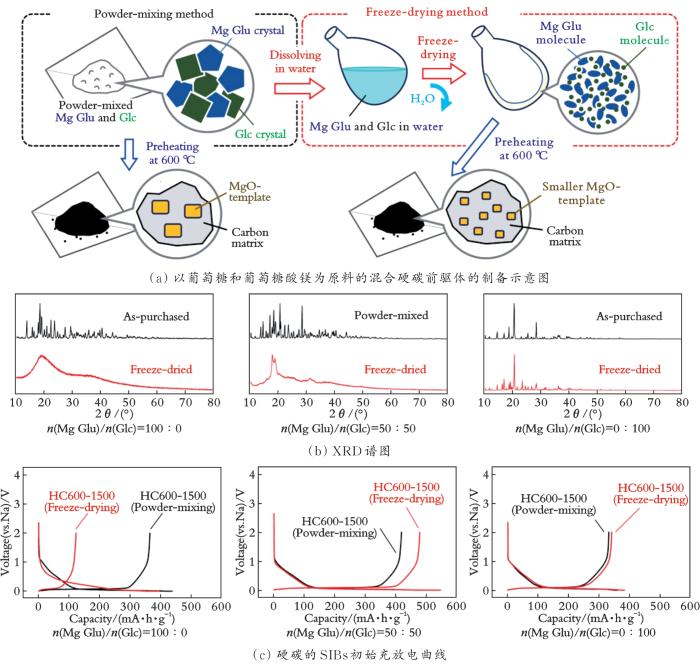

Schematic diagram of preparation of mixed hard carbon precursor and its XRD spectrum, initial charge discharge curve of SIBs<sup>[<xref ref-type="bibr" rid="R41">41</xref>]</sup>Fig.4
Schematic diagram of preparation of mixed hard carbon precursor and its XRD spectrum, initial charge discharge curve of SIBs<sup>[<xref ref-type="bibr" rid="R41">41</xref>]</sup>Fig.4
... [41]Schematic diagram of preparation of mixed hard carbon precursor and its XRD spectrum, initial charge discharge curve of SIBs<sup>[<xref ref-type="bibr" rid="R41">41</xref>]</sup>Fig.4

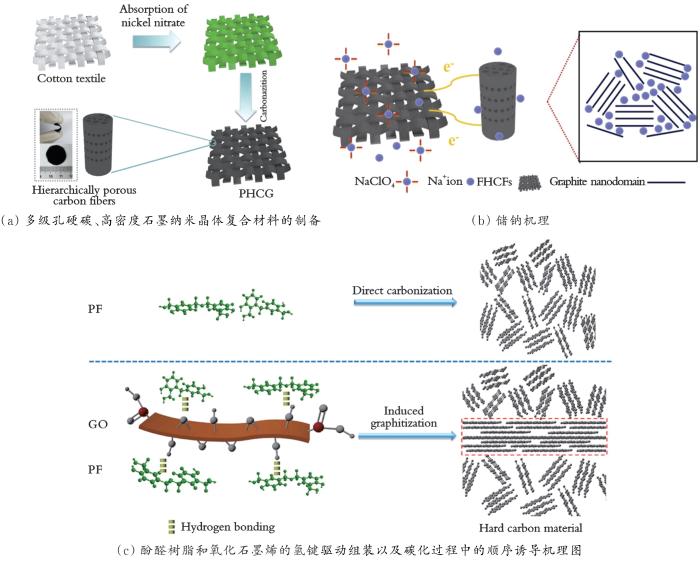

Carbonization-induced mechanisms and heteroatom doping in hard carbon<sup>[<xref ref-type="bibr" rid="R42">42</xref>,<xref ref-type="bibr" rid="R44">44</xref>]</sup>Fig.55 结 论
... ，44]Carbonization-induced mechanisms and heteroatom doping in hard carbon<sup>[<xref ref-type="bibr" rid="R42">42</xref>,<xref ref-type="bibr" rid="R44">44</xref>]</sup>Fig.55 结 论
